Thiết bị đo lưu lượng bơm chữa cháy MECON Turbo-Lux 3

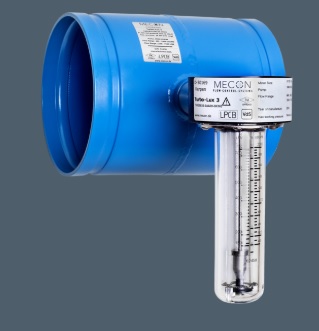

he Turbo-Lux 3 orifice flow meter is used to measure the volume of clear liquids and gas flows in closed pipelines. The installation position and direction of flow are flexible. The areas of application focus on use in stationary water-based extinguishing systems in water supply test pipes. The certifications required form FM, LPCB and VdS have been obtained.
The orifice fire pump test meter is used in the following industries:
- Fire safety (stationary sprinkler systems)
Advantages of the fire pump test meter:
- Safety certified by three independent certification companies in just one device (FM, LPCB and VdS)
- Nominal sizes from DN 50 (2") to DN 300 (12")
- Covers measuring ranges from 75 to 38.000 lpm (50 – 5.000 GPM)
- Easy to install with grooved connection to the pipe network
- Thanks to the sophisticated design, the device is ready for operation after connection to the pipe network with just one threaded connection, guaranteeing rapid and simple installation
- The only manufacturer with a VdS approval offering groove connections
- High and constant read precision
