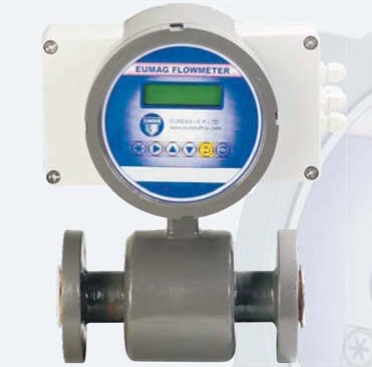

Thiết bị đo lưu lượng kiểu điện từ hãng Eureka EUMAG

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị đo lưu lượng kiểu điện từ hãng Eureka EUMAG

Thông tin sản phẩm

Thiết bị đo lưu lượng kiểu điện từ hãng Eureka


Specifications For Series Eumag--0/1

Basic Flowmeter Sensor

Accuracy : +0.5%, +1%, +2% of flow rate
Technique : Pulsed DC
Liquid Conductivity : 5 Micro Siemens or better
Line Size : 4 NB to 1600 NB
Pressure Rating : Upto 40 bar
Temperature Rating : 600 C for Neoprene lining, 1800 C for PTFE lining
Lining Material : Neoprene, PTFE other on request
Electrode Material : SS 316, SS 316 L, HASTELLOY-C, Titanium other on request
Protection Category : P 65(Optional IP-67, IP-68)
Earthing Electrode : Built in (no need for earthing rings)
Velocity Ranges : Progrmmable 0+2.5 m/s, 0+5 m/s 0+10 m/s


Signal Convertor

Accuracy : +0.5% of Flow Rate or better in between 0.5 to 10m/sec. velocity
Supply Voltage : 110/220 VAC, 50HZ optional - 24 VAC or 24 VDC
Programmability through MMI or Serial Port : Pipe Diameter, Flow Units, Pulse Output Units and Resolution, Low-flow Cut-off percentage, Bidirectional Flow.


Convertor with inputs display:

Apart from the above features, it has isolated RS 485 or RS 232 or HART capability. It also includes the Batching option, Logging option etc.

  1. 16x2 Backlit Display (ch. Size 3 mm)
  2. 6 Key Membrane Keyboard
  3. Serial Interface with basic MF board
  4. Serial Interface to field: RS 485 Galvanically Isolated for Modbus / Profibus Options
  5. Batching capability
  6. Operator Menu based Interface For Setting Up and Servicing.

Note: At any given time only one of the interfaces can be offered : RS 485 or Rs 232 or HART
