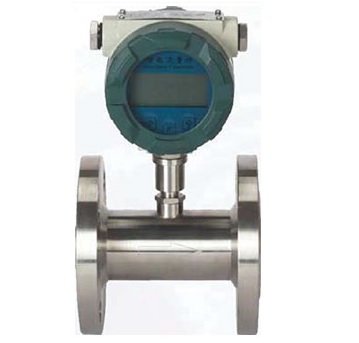

Thiết bị đo lưu lượng kiểu Turbine hãng Eureka EUTURB
EUTURB consists of a multiple-bladed rotor mounted in a pipe, perpendicular to liquid flow. Liquid flows through the pipe causing a rotor to spin. As the rotor spins, an electrical signal is generated in the pickup coil. Pulses are counted & 4-20 mA gets generated with the use of converter.
Operating Conditions
| Application |
: |
Water, Diesel, Gasoline, Oil etc. |
| Meter size |
: |
DN 4 to DN500 |
| Flow |
: |
0.04 - 0.25 to 400 - 4000 m3/h |
| Ambient Temperature |
: |
-20 to +60 deg C. |
| Fluid Temperature |
: |
-20 to +120 deg C. |
| Operating Pressure |
: |
for threading connection - 16 bar to 400 bar / for flange connection - as per flange rating |
Performance
| Repeatability |
: |
±0.2% |
| Accuracy Standard |
: |
±1% of reading |
