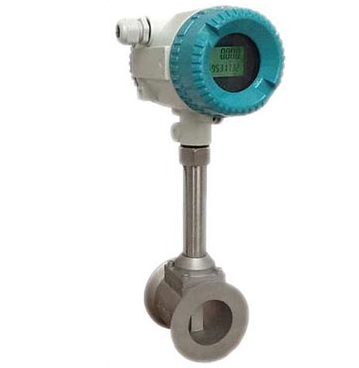

Thiết bị đo lưu lượng kiểu Vortex hãng Eureka Eurekone EUVORT
Principle of Vortex meter is based on the Karman vortex street. When fluid flows through a bluff body, vortices are alternately formed on both sides with opposite directions of rotation. These vortices each generate small amount of pressure. The pressure fluctuations are recorded by the sensor and converted to electrical pulses. The vortices develop very regularly within the permitted limits of the meter. Therefore, the frequency of vortex shedding is proportional to the volume flow.
Operating Conditions
| Application |
: |
Gas, Liquid Steam |
| Meter size |
: |
DN 15 to DN300 |
| Flow |
: |
Liquid 1.2 – 6.2 to 200 - 2000 m3/h
Gas/Steam 5 – 25 to 1380 - 11000 m3/h |
| Ambient Temperature |
: |
- 20 to +70 deg C. |
| Fluid Temperature |
: |
- 20 to +350 deg C. |
| Operating Pressure |
: |
as per flange rating |
| Wetted parts |
: |
SS316 / SS304 |
Performance
| Repeatability |
: |
±0.1% |
| Accuracy |
: |
Liquid ±1% of reading
Gas/ Steam ±1.5% of reading |
