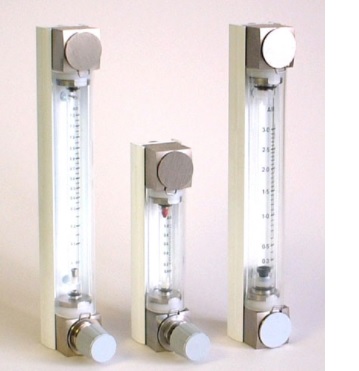

Thiết bị đo lưu lượng Nixon NFX Glass Tube
Flow ranges: gas range 20 cc/min—115 l/min (air equivalent) • Liquid ranges 2.0 cc/min-4.6 l/min • (water equivalent)
Scale length options - 140 mm / 100 mm / 30 mm • Accuracy Class - % 1.6 / 2.5 / 4 VDI/VDE • Temperature range - -15°C to +20°C • Maximum pressure - 20 Bar Non shock • Connections - Stainless Steel or Nickel plated brass • 1/4” BSP Female • Seals- Viton • Flow tube - Borosilicate glass • Float- Stainless Steel, Anodised Aluminium
