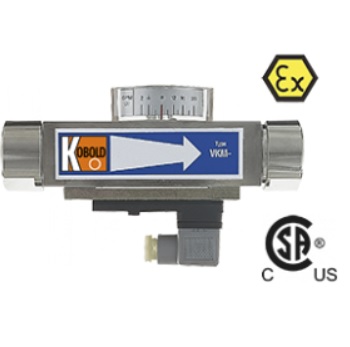

Thiết bị đo lưu lượng Kobold VKM
Measuring / switching range:
0.01 - 0.07 ... 8 - 80 l/min liquid
1 - 540 mm²/s viscosity
Connection: G ¼ ...1, ¼ ...1" NPT female thread
Material: brass, stainless steel
pmax: 250 (brass), 350 bar (stainless steel)
tmax: 100°C
Output: max. 2x contact, 1x analogue
Power supply: 24 VAC/DC , 24 VDC ±20 %, max. 250 VAC
Electrical connection: plug DIN EN 175301-803, cable
Accuracy: ±4 % of full scale
Option: block valve BVB
Approval: cCSAus, ATEX
