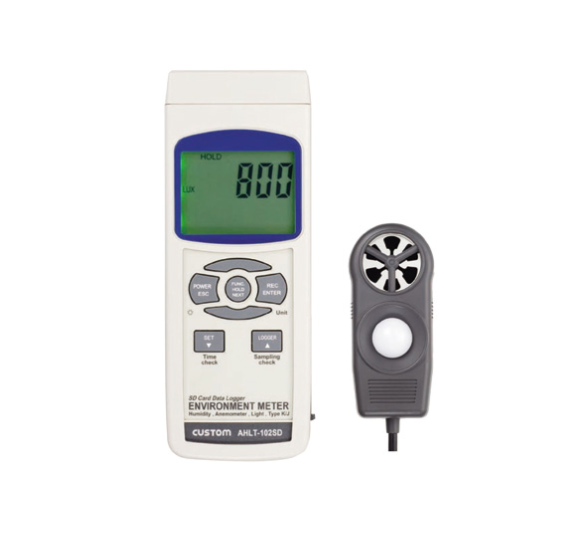

Thiết bị đo môi trường đa năng AHLT-102SD Custom

Mã sản phẩm: AHLT-102SD |

Thương hiệu: Custom

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị đo môi trường đa năng
Model: AHLT-102SD
Hãng: Custom

Thông tin sản phẩm

- Wind speed, illumination, temperature, data recording to the humidity of the measurement / SD card is multi-functional environment measuring instrument possible.
- Since the recording data is available in commercially available spreadsheet software, you can take advantage of a variety of applications.
- Data recording, can be selected from the automatic recording / manual recording. Sampling set time of automatic data logger can be set arbitrarily than 1,2,5,10,30,60,120,300,600,1800,3600 seconds

Thông số kỹ thuật

Wind speed

unit	range	resolution	Measurement accuracy
m / s	0.4 ~ 25.0m / s	0.1m / s	± (2% + 0.2m / s)
km / h	1.4 ~ 90.0 km / h	0.1km / h	± (2% + 0.8km / h)

Illuminance

unit	range	resolution	Measurement accuracy
lux	0 ~ 20,000lux	1lux	± (5% rdg + 8dgt)

Accuracy is what has been compared to the test by a tungsten lamp standard parallel light of the absolute temperature 2856K.

Temperature

unit	range	resolution	Measurement accuracy
℃	0 ~ + 50 ℃	0.1 ℃	± 0.8 ℃

Humidity

unit	range	resolution	Measurement accuracy
% RH	0 ~ 95% RH	0.1% RH	70 Pasento RH ≧: ± (3 Pasento rdg Tasu 1 Pasento RH) <70 Pasento RH: ± 3 Pasento RH

Thermocouple sensor temperature

type	Measurement range	resolution	Measurement accuracy
K type	-100.0 ~ -50.1 ℃	0.1 ℃	± (0.4% + 1 ℃)
K type	-50.0 ~ + 1300.0 ℃	0.1 ℃	± (0.4% + 0.8 ℃)
J type	-100.0 ~ -50.1 ℃	0.1 ℃	± (0.4% + 1 ℃)
J type	-50.0 ~ + 1200.0 ℃	0.1 ℃	± (0.4% + 0.8 ℃)

It does not include the option of sensor accuracy in the measurement accuracy.
There is no handling of the J-type thermocouple sensor at our company.

General specification

Use temperature and humidity	0 ~ + 50 ℃, 85% RH or less (without condensation)
Storage temperature and humidity	-20 ~ + 60 ℃, 85% RH or less (without condensation)
Power supply	AA batteries × 6 or AC adapter (sold separately)
Dimensions and weight	Body: W68 x H177 x D45mm, about 465g (including battery) The sensor head: 107.5 × 47mm
accessories	Manual, sensors (wind speed / intensity / temperature / humidity)
Proofreading	Some calibration Allowed (wind speed is not allowed)
option	AC adapter: VSM-932EK K-type thermocouple sensor: LK model number of the product
