Input type
A multi-function temperature / voltage model is also available for simultaneous recording of temperature and voltage.
Interface
The link to the PC is by USB or RS-232C.
Number of inputs

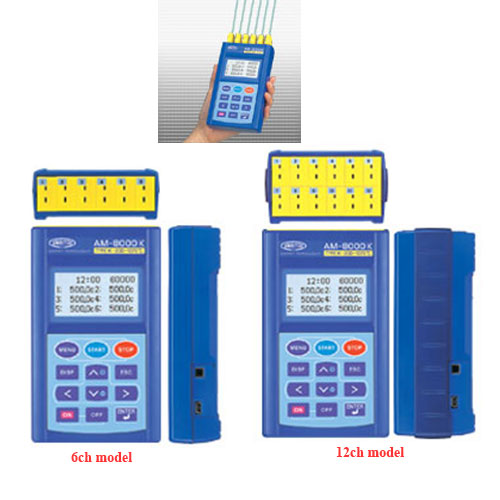

6ch model (capable of storing 60,000 measurements) or 12ch model (capable of storing 120,000 measurements)
Interval
The high-speed model is capable of measuring at 100ms intervals.
| Model |
AM-8000 |
AM-8001 |
AM-8100 |
AM-8101 |
| Input Type |
Temperature |
| Measurement Range |
Table 1 |
| Resolution |
0.1°C / 1°C (fixed) |
| Measurement Accuracy |
Table 3 |
| Memory capacity |
60,000 data |
| High-speed interval |
1 second |
0.1 seconds |
1 second |
0.1 seconds |
| Interface |
USB1.1 |
RS-232C |
| Dimensions / Weight |
92(W) × 155(H) × 36(D) mm [Protruded parts excluded] / approx.380g [Including dry batteries] |
