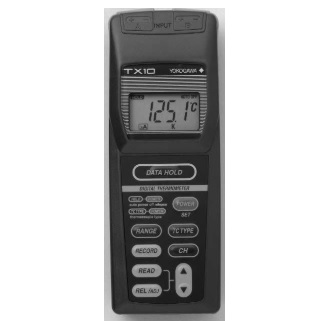

| Yokogawa TX1003 General Specifications |
| Number of Input channel |
2 |
| Measuring Range |
Type E: -200 to 700°C (-328 to 1292°F)
Type J: -200 to 1000°C (-328 to 1832°F)
Type K: -200 to 1372°C (-328 to 2501.6°F)
Type T: -200 to 400°C (-328 to 752°F) |
| Resolution |
-200.0°C to 199.9°C: 0.1°C or 1°C (when 1°C resolution is set)
+200°C or above: 1°C |
| Accuracy |
+200 °C or above, or when 1°C resolution is set ±(0.2% of rdg + 1°C)
-100.0°C to 199.9°C ±(0.1% of rdg + 0.7°C)
-200.0°C to -100.1°C ±(0.1% of rdg + 1.0°C) |
| Temperature Coefficient |
± (0.015% of rdg +0.06°C)/°C |
| Approx. Measurement Interval |
2 sec |
| Data Storage |
Capable of storing up to 10 measured data items |
| Simplified Correction |
Correction range: ±20°C of measured value |
| Display Item |
HOLD, RCD, REL, ADJ, MAX, MIN, MEM, °C chA, chB, chA-chB TC type K, J, E, T Battery alarm |
| Other Functions |
Auto power-off, battery alarm |
| Display |
LCD |
| Operating Temperature |
0 to 50 ºC |
