Test & Audit Ionizers: Records and analyses ionization offset and decay time in accordance with ANSI/ESD SP 3.3 and ANSI/ESD STM 3.1 and generates performance reports
Other Equipment Applications include voltage generation of chairs, carts and process equipment
Records voltage data at 50, 100 or 200 samples per second
Analyze Footwear & Flooring Combinations: Records personnel walking voltages in accordance with ANSI/ESD STM 97.2 Body Voltage measurements as required by ANSI/ESD S 20.20 ESD Program Standard
File recording time at 50 samples/second is 14 minutes
Has internal memory for remote data recording, allows downloading at a later time
Operates on its own rechargeable battery, which recharges from your computer or supplied AC/DC charger
Accepts up to 2.0 volts from any instrument analog output

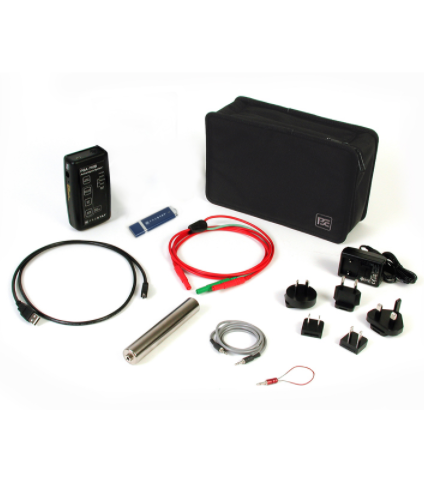

The PGA-710B is a unique electrostatic data analysis device for use with Prostat's PFK-100 Field meter/Charge Plate Monitor Set. It records, plots, analyzes and automatically constructs reports of body voltage generation, electrostatic decay, voltage retention, ionizer performance and other static measuring functions.
The PGA-710B's unique software will instantly perform mathematical and statistical functions to assist ESD Program Managers and Plant Auditors in defining strengths and weaknesses of the ESDS device transport and handling process.
The PGA-710B will calculate the ±3-Sigma ranges of Walking and Standing body voltages in your facility, graphically plot the percent probability of equaling or exceeding specific body voltages in the process, and calculate the maximum, minimum and average of voltage generation or decay times.
