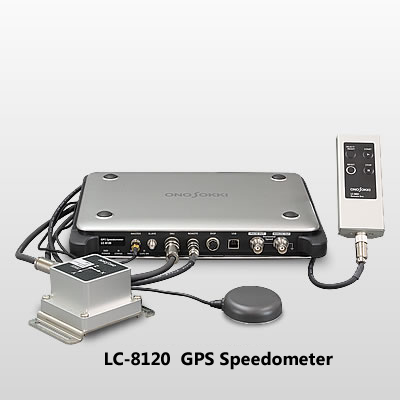

LC-8120 GPS Speedometer
|
LC-8220 GPS Vector Speedometer
|
| Update frequency |
100 Hz |
| Horizontal speed |
Measurement range |
0.1 to 500.0 km/h |
| Accuracy |
±0.1 km/h＊1 |
| Horizontal distance |
Accuracy |
±0.05 %＊2 |
| Forward speed |
Measurement range |
-(Available by LC-0823) |
-500.0 to 500.0 km/h |
| Accuracy |
±0.2 km/h＊3 |
| Forward distance |
Accuracy |
±0.1 %＊4 |
| Lateral speed |
Measurement range |
-20.0 to 20.0 m/ｓ |
| Accuracy |
±0.08 m/ｓ＊5 |
| Lateral distance |
Accuracy |
±0.15 %＊6 |
| Sideslip angle |
Measurement range |
-25.0 to 25.0° |
| Accuracy |
0.15°RMS＊7 (Reference accuracy) |
| Vehicle attitude angle |
Measurement range |
-180.0 to 180.0° |
| Accuracy |
0.1°RMS＊8 (Reference accuracy) |
| Yaw angle |
Measurement range |
-(Available by LC-0821) |
-180.0 to 180.0° |
| Accuracy |
0.1°RMS＊8 (Reference accuracy) |
| X,Y,Z acceleration |
Measurement range |
-98.0 to 98.0 m/s2
[-49.0 to 49.0 m/s2 ＊9]
|
| Linearity |
±0.2 % / F.S. [±0.1 % / F.S.＊9] (All reference accuracy) |
| X,Y,Z angular speed |
Measurement range |
-150.0 to 150.0°/s ＊9 |
| Accuracy |
±0.1 % / F.S. [±0.03 % / F.S.＊9] (All reference accuracy) |
| Analog (speed)output |
Voltage range |
0 to 10 V/0 to 500 km/h(Can be changed by attached software.) |
| Output accuracy |
±0.2 % F.S. |
| Load resistance |
100 kΩ or more |
| Temperature stability |
±0.05 % / F.S./°C |
| Output delay |
5 ms or less |
| Pulse (distance)output |
Resolution |
1, 5, 10 mm/P Selectable |
| Output delay |
5 ms or less |
| DUTY |
50 % ±10 % |
| Load resistance |
10 kΩ or more |
| Output signal |
Rectangular wave pulse output:
Hi:5 V % ±0.5 V, Lo: 0.5 V or less
|
Arbitrary analog
output |
Item |
-(Available by LC-0850A) |
Selectable 16-ch from Horizonta |
