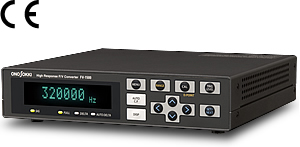

Input specification
|
| Input connector |
BNC(C02 type), terminal block |
| Input format |
Single-phase, AC/DC/non-voltage selectable(+12 V pull-up for open collector devices)
Two-phase signal with 90° phase difference(DC input only) |
| Input voltage |
AC input signal voltage range :0.3 Vp-p to 30 Vp-p |
| DC input signal voltage range :Lo；+1 V or less, Hi；+4 to 30 V |
| Filter |
OFF / 20 kHz / 120 kHz low-pass filter |
| Input impedance |
2.2 kΩ |
| AC coupling frequency |
0.9 Hz approx. -3 dB |
| Minimum input pulse width |
1.5 µs |
| Input signal detection edge |
Rising / falling selectable |
| Input frequency range |
0.2 Hz to 320 kHz
| For full scale mode output |
Can be set from 1 to 320000 Hz in increments of 1 Hz |
| Can be set from 1 to 320000 r/min in increments of 1 r/min |
| Can be set from 1 to 320000 m/min in increments of 1 m/min |
| For deviation mode |
Selectable from the measurement frequency in the range up to 320 kHz
±1 %, ±5 %, ±10 %, ±20 %, ±50 %, ±100 % or ±1 to 180,000 (can be set in increment of 1Hz, 1r/min, or 1m/min.) |
|
