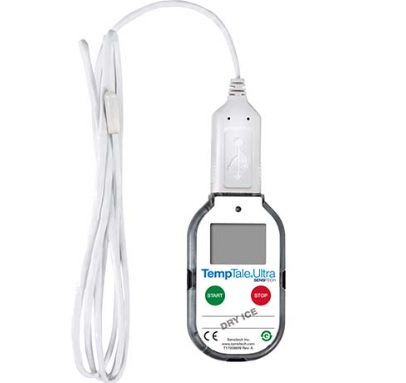

Thiết bị đo và ghi nhiệt độ TempTale Ultra Dry Ice Probe Sensitech
Monitoring Recording Options Single Use, Single-Use with User Programmable Overwrite, or Multiple Use Probe Temperature Measurement Range -90°C to + 30°C (-130°F to +86°F) Probe Sensor Accuracy Range ±1.5°C from -90°C to +30°C (±2.7°F from -130°F to +86°F) Monitor Operating Range -30°C to + 70°C (-22°F to +158°F) Temperature Resolution 0.1°C/F over full temperature measurement range Data Memory Type Non-volatile 16K Flash memory Data Storage Capacity 16,000 data points (16K) Battery Life / Type 12 months operating life / 3.6v lithium battery Data Sampling Interval Programmable from 30 seconds up to a maximum of 120 minutes Water Resistant Housing IP64 (with detachable probe connected to monitor) Start Up Delay 0 minutes to 24 hours Programmable Alarms Alarm Mode Options • High/Low • Multi-Alarm (up to six) – single temperature limit, temperature range, dual temperature range, MKT, duration Alarm Delay Time Thresholds Single event (continuous) or cumulative
LCD Indicators Started, start-up delay, running, stopped; Alarm status: OK (), Alarmed (); Trip summary data (average, minimum, maximum); Current temperature reading; Time remaining / time elapsed against alarm thresholds; PROBE and X flash when probe disconnects from monitor Cable Length Options 1m and 3m Outer diameter of cable (typical) 3.5mm Weight (typical) 82.2 grams (2.9 oz) with 1m probe 119.0 grams (4.2 oz) with 3m probe Quality Assurance Certifications CE, EN/12830, RTCA – DO160G; 3-point NIST® traceable Certificate of Calibration Minimum System Requirements Windows® PC w/ Windows® 7 Pro (64-bit) or higher; Adobe® Reader 9.0 or higher Data Analysis and Cold Chain Continuous Improvement Software TempTale Manager® Desktop 8.0 or higher; ColdStream® Cold Chain Manager 1.8A or higher; ColdStream® Web 1.1 Computer Interface USB 2.0, A-type plug
