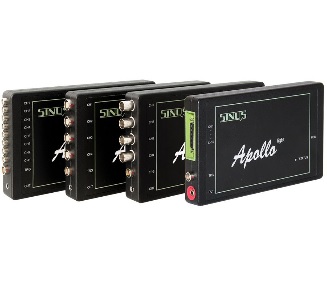

Thiết bị đo và phân tích độ ồn, độ rung SINUS Apollo light
The low-cost sound and vibration analyzer Apollo_light hardware provides 2-16 measuring channels and additional trigger/tacho channels on the footprint of a USB hard drive. The measurement electronics is packaged in a robust, high-quality aluminium case. Ultra-low power consumption allows operation with a tablet PC. The Apollo_light is our cheapest FFT- and octave analyzer in our product range. Multiple Apollo_light devices can be synchronised for sample-synchronous operation and allow an individually adjustable sample rate for each channel.
The Apollo_light is especially well-suited for applications in:
- Occupational safety and environmental protection
- Engineering services
- Quality assurance
- Research and development
The measurements you may implement with our modular software packages include:
- Sound level measurements
- Frequency analysis
- Signal recording
- Human vibration measurements
- Measurements of ground-propagated vibration
- Building and room acoustics
- Machinery vibration measurements
- Modal analysis
- Order analysis
- Structural analysis
CORE FEATURES
Apollo_light version overview
| VERSION |
ORDER NO. |
MAIN INPUTS |
| Apollo_lt_2B |
908046.2 |
2 x BNC |
| Apollo_lt_2L |
908045.4 |
2x Lemo 7 |
| Apollo_lt_4L |
908047.0 |
4x Lemo 7 |
| Apollo_lt_4B |
908048.7 |
4x BNC |
| Apollo_lt_8C |
908049.5 |
8x LEMO NIM-CAMAC |
| Apollo_lt_16 |
908050.1 |
MDR 36, Splitter Box MDR/18x BNC |
