Thiết bị đo và phân tích độ ồn SINUS Apollo Box

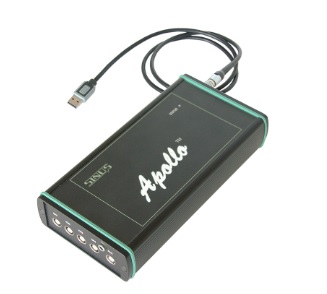

The Apollo-Box is a flexible and reasonably priced 2- or 4-channel data acquisition system with a USB interface. This small and robust box transforms a PC combined with our flexible software into a high-quality multi-channel acoustic analyzer for a wide variety of acoustic and vibration measurement applications.
Based on your measurement requirements you may choose from variants with 2 or 4 LEMO7 inputs or 4 BNC inputs. Further additional channels extend the functionality of the Apollo-Box. Among others 8 additional low-sample-rate channels and 2 tacho or trigger channels are available. You may also use the Apollo-Box as a channel extension to the Soundbook MK2 measurement system, for example.
The Apollo-Box is the ideal tool for:
- Occupational safety and environmental protection
- Engineering services
- Quality assurance
- Research and development
Apollo_Box version overview
| VERSION |
ORDER NO. |
MAIN INPUTS |
| Apollo_Box_4B |
908202.1B |
4x BNC |
| Apollo_Box_4L |
908204.6A |
4x LEMO7 |
| Apollo_Box_2L |
908201.3A |
2x Lemo7 |
For multi-channel systems with 4x Apollo_Box or 3x Soundbook_Expander an extension to 32 channels is possible.
The measurements you may implement with the modular software packages we offer include:
- Sound level measurements
- Frequency analysis
- Signal recording
- Human vibration measurements
- Pass-by noise measurements
- Building acoustics
- Machinery vibration measurements
- Modal analysis
- Order analysis
- Structural analysis
CORE FEATURES
