Thiết bị đồng hóa mẫu bằng siêu âm SONOPULS HD 4050, HD 4100, HD 4200, HD 4400

Thiết bị đồng hóa mẫu bằng siêu âm SONOPULS HD 4050, HD 4100, HD 4200, HD 4400

For more informations visit our page about the ultrasonic homogenizers in laboratory use or check our laboratory catalogue.

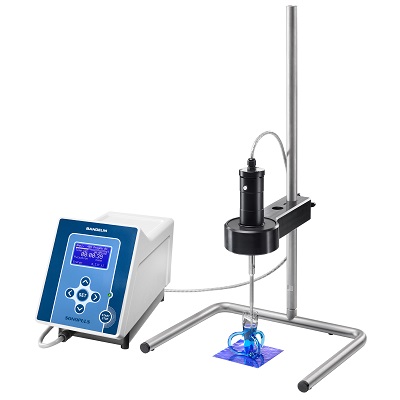

SONOPULS HD 4050

For volumes from 0.5 to 100 ml

Ready-to-use set:
for volumes from 0.5 to 20 ml
ultrasonic nominal output max. 50 W
• Ultrasonic generator GM 4100
• Ultrasonic converter UW 50
• Titaninum probe TS 102, dia. 2 mm

Code no. 4050

SONOPULS HD 4100

For volumes from 2 to 200 ml

Ready-to-use set:
for volumes from 3 to 50 ml
ultrasonic nominal output max. 100 W
• Ultrasonic generator GM 4100
• Ultrasonic converter UW 100
• Standard horn SH 100 G
• Titaninum probe TS 103, dia. 3 mm

Code no. 4100

SONOPULS HD 4200

For volumes from 5 to 1000 ml

Ready-to-use set:
for volumes from 20 to 900 ml
ultrasonic nominal output max. 200 W
• Ultrasonic generator GM 4200
• Ultrasonic converter UW 200
• Booster horn SH 200 G
• Titanium flat tip TT 213, dia. 13 mm

Code no. 4200

SONOPULS HD 4400

For volumes from 100 to 3000 ml

Ready-to-use set:
for volumes from 500 to 2000 ml
ultrasonic nominal output max. 400 W
• Ultrasonic generator GM 4400
• Ultrasonic converter UW 400
• Booster horn SH 400 G
• Probe TS 425, dia. 25 mm

Code no. 4400

Probes for SONOPULS HD 4050, HD 4100 and HD 4200

TS 102

TS 103

TS 104

TS 106

TS 109

TT 213

TS 113

TS 216

TS 219

TS 225

Code no.

3740

3741

3742

3743

3744

3750

3745

3746

3747

3748

Diameter [mm]

2

3

4,5

6

9

13

13

16

19

25

Length* ca. [mm]

150

139

131

128

117

–

130

–

–

–

Booster horn for HD 4100

SH 100 G

SH 100 G

SH 100 G

SH 100 G

SH 100 G

SH 100 G

SH 100 G

–

–

–

Booster horn for HD 4200

–

SH 200 G

SH 200 G

SH 200 G

SH 200 G

SH 200 G

SH 200 G

SH 200 G

SH 200 G

SH 200 G

Amplitude HD 4050 / 4100 / 4200  (peak to peak) [μm]

125/260/–

118/245/280

90/195/235

70/155/210

58/130/185

–/80/128

–/82/132

–/ –/ 90

–/ –/ 68

–/ –/ 50

Volume HD 4050 [ml]

0,5–20

1–25

3–50

5–75

10–100

–

–

–

–

–

Volume  HD 4100 [ml]

2–25

3–50

5–75

10–100

15–150

20–200

20–200

–

–

–

Volume HD 4200 [ml]

–

5–90

5–100

10–350

10–500

20–900

20–900

25–900

25–900

30–1000

Probes for SONOPULS HD 4400

	TS 413		TS 416		TS 419		TS 425		TS 432		TS 438
Code no.	3752		3753		3754		3755		3756		3757
Diameter [mm]	13		16		19		25		32		38
Length* ca. [mm]	140		134		132		129		138		145
Booster horn for HD 4400	SH 400 G		SH 400 G		SH 400 G		SH 400 G		SH 400 G		SH 400 G
Amplitude HD 4400	242		196		142		82		59		42
(peak to peak) [μm]
Volume HD 4400 [ml]	100 – 750		250 – 1000		250 – 1500		500 – 2000		500 – 2500		500 – 3000
