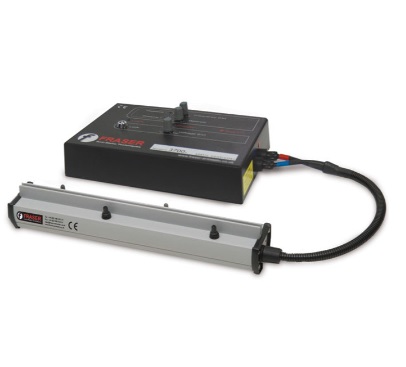

Thiết bị khử tĩnh điện Fraser 3850 Ionstorm

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị khử tĩnh điện Fraser 3850 Ionstorm

Thông tin sản phẩm

Thiết bị khử tĩnh điện Fraser 3850 Ionstorm


Construction

Rigid, easy-to-clean PVC body. Replaceable, long-life tungsten emitters in FR-ABS Housing.

Dimensions

59 x 54 mm (W x H).

Available Lengths:
3850-SC: 250 mm, then in steps of 250 mm to 5000 mm.
3850-HP-SC: 175 mm, 300 mm, 400 mm, 500 mm, then in steps of 150 mm to 5000 mm.

Maximum length of 5000 mm in one rigid bar. Can be joined together to make bars up to 10000 mm.

Output Voltage

Adjustable 0 - 15 kV from the 3700-SC Ionstorm Controller.

Maximum Load

Combined bar and cable per 3700-SC Controller: 3850-SC – 15 m, 3850-HP-SC – 12 m.

Output Voltage

Adjustable 0 - 15 kV from the 3700-SC Ionstorm Controller.

Balance

A balanced output can be set if the static charge varies. If the static charge is constant, the balance can be adjusted 80:20 in each polarity for even better performance.

Cable

In a protective nylon conduit, 2 m standard. Up to 10 m can be specified provided that it is within maximum load. Screw connectors for fast connection to the 3700-SC Ionstorm Controller.

Remote Operation

On/Off and Alarm via the 6-pin mini-DIN connector on the 3700-SC Ionstorm Controller.

Electrical Input

115/230 V AC, 50/60 Hz. 24 V DC.

Environmental

60 °C max. 70 % rH non-condensing max.

Options

Bars joined in series.
3850-SC Connector Box (2:1 and 4:1 options) allows multiple bars to be powered from one 3700-SC Ionstorm Controller. See separate Datasheet.
