Thiết bị khử từ Magnetic Model 990A, 990C
Description
The Model 990 Series Magnetreaters® are highly accurate, pulse type, ringing demagnetizers (also called treaters) for the controlled stabilization of permanent magnets and permanent magnet assemblies. Regardless of line voltage stability, they provide a controlled output through continuous pulse amplitude regulation. Treating voltage is variable from 0 to 600 VDC. Additional energy can be added to the Model 990 Series by interconnecting a Model 992 Energy Booster. The energy level is increased from 18 to 36 watt-seconds. With this option, treating coils will produce higher demagnetizing fields and lower ringing frequencies, which can provide greater field penetration in some applications.
Features
- Precision Stabilization
- High Resolution
- Pulse Rate and Amplitude Controls
- Bench or Rack Mount Configurations
- Continuously Variable Output Power (0 to 600 VDC, 200 Amps maximum with low line demand)
- Three Modes of operation include: Manual, Gaussmeter, or Computer Control
- Complete Magnet Processing, in one fixture (when interfaced with a Magnetizer and Gaussmeter)
- A wide range of standard Treating Coils and Fixtures are available
- Custom Treating Coils are designed for Specific Applications.

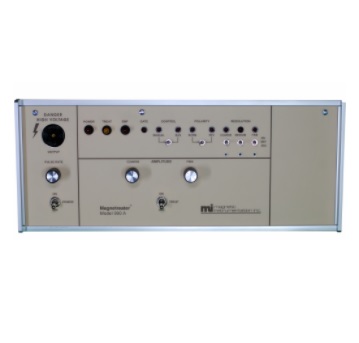

Model 990A
The Model 990A Magnetreater® is designed for manual control of treating, or it can be equipped with the optional D/A reference generator Module for computer control. The unit has two output controls for manually adjusting the treating pulse output, a pulse rate control, and a series of front panel lights to indicate system status.
Model 990C
The 990C Magnetreater® has all the functions of the Model 990A, with the addition of the Dual Slope and Automatic Control circuitry. The Dual Slope control enables the output to be gradually increased at one or two different rates from an initial starting level. Front panel controls adjust the rate of increase for both the fast and slow slopes. A reset control allows the operator to return the output to the initial starting level upon completion of a treat cycle. The automatic control utilizes the analog output from the Model 912 Gaussmeter or 912T Teslameter to provide a closed loop, automatic treating system. A digital front panel meter is used to adjust the desired treat level as a percentage of full scale and to display the magnetic field level of the magnet being processed.
