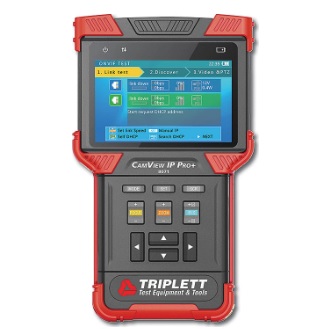

Thiết bị kiểm tra camera an ninh Triplett 8071 CamView IP Pro

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị kiểm tra camera an ninh Triplett 8071 CamView IP Pro

Thông tin sản phẩm

Thiết bị kiểm tra camera an ninh Triplett 8071 CamView IP Pro


Technical Specifications
PORTS
Network Ports (2) 10M/100M/1G RJ45 ports (Blue is PoE Out; Green is PoE In)
I/O Ports (2) BNC ports (Video IN and Video OUT), (1) RS485, (1) Audio In, (1) USB, (1) Reset Button
IP CAMERA TEST FEATURES
Protocols ONVIF 2.4.1, RTSP, RTP
Ethernet Tests 10M/100M/1G Ethernet link test, loop detect, Ethernet traffic flow monitor, link quality test
IP Configurations Static IP / DHCP client / DHCP server
IP Camera Tests Discover camera, real-time video, camera configuration, PTZ control, audio test, full screen preview, and 8x digital zoom; snapshot, record video (recording original data stream), store ONVIF camera reports
AHD, TVI, & SD ANALOG CAMERA TEST FEATURES
SD Signal Format NTSC / PAL
HD Video Signal Formats AHD & TVI
Resolutions D1, 720P, 1080P
Signal Level 1Vpp
Camera Tests Real-time video, PTZ control, audio test, full-screen preview, and 8x digital zoom; snapshot, record video (H.264)
PTZ CONTROLS
Protocol More than 30 protocols including Dahua, Pelco-D/P, Samsung, Panasonic, Lilin, Yaan etc.
Baud Rate 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
DETECTION
TDR Tests 0~150m network cable length measurement (resolution 1m), cable pair status
PoE Tests PD test (tester accepts PoE power, displays voltage)
  PSE test (tester provides PoE power, displays power)
Network Analysis Sniff, list subnet, ping
