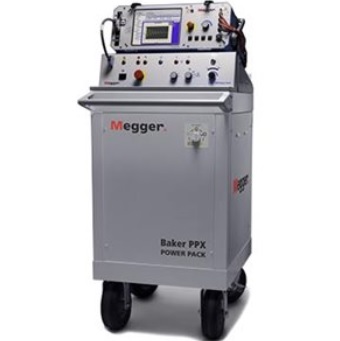

Thiết bị kiểm tra động cơ Megger PPX30, PPX40, PPX30A
- Used to extend insulation testing range of AWA-IV static motor analysers and selected DX analysers
- Test voltages from 5 kV to 40 kV
- Available in three models (PPX30, PPX40, PPX30A)
- Mobile, large-wheeled cabinet for easy transport to the test area
- AC outlet on cabinet for the host unit (i.e., AWA-IV or DX), as well as lead storage
- Baker PPX30A includes an internal armature test circuit built in for testing large DC motors. When in armature mode, test voltage is limited to 2100 V and the current available is increased up to 7000 A.
- Complete range of tests (surge, winding resistance, Megohm (PI, DA), continuous ramp DC step-voltage, and DC hipot tests).
When coupled with Baker static motor analysers (i.e., certain Baker DX and AWA-IV models), the Baker PPX Power Packs extend the insulation testing voltage range. They help verify the condition of insulation on form-wound coils, high voltage AC motors and large DC motors, and are ideal for use in manufacturing, predictive maintenance, and motor rewind and repair settings.
