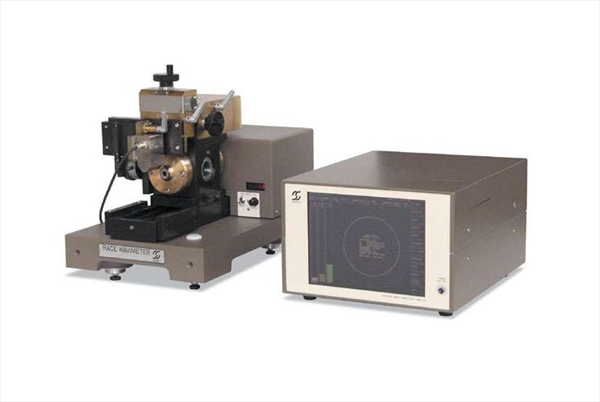

- Speedy measurement: Real-time measurement (time required for race setting: 10 sec or less).
- Capability of measuring extremely small rings for miniature bearings (measurement of outer rings as small as 3.5 mm in inner diameter).
- Dedicated Pusher for stable measurement.
- Replaceable Arbor for measurement of rings of different sizes.
- Measurement unit: nmWCLA, nmPC, nm, nm/rad, etc..
- Measurement results are displayed directly on the screen as numerical data in L, M, H frequency ranges, polar-coordinate graphs, etc..
- High-precision measurement: Practical measurement accuracy of 10 nm.
- Dedicated compact speed sensor with flat characteristics (10 times greater sensitivity than laser Doppler vibrometer) originally developed and manufactured by Sugawara.
- Desktop configuration for space-saving installation.
- Equipped with a large easy-to-view color LCD.
- Optional printer for output of hard copy of screen display.
- Much cheaper than similar products of equivalent
