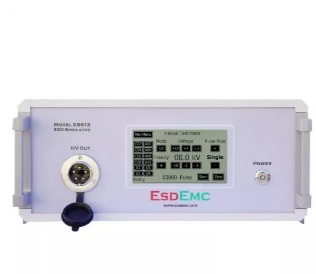

Thiết bị mô phỏng tĩnh điện EDS ESDEMC ES613 ESD Simulator
The ES613 Series ESD simulator is our latest design of ESD simulator with the most advanced features, including exchangeable RC network modules, exchangeable rise time tips, zap-counter, and remote control. It meets the requirements of the IEC61000-4-2 and ISO 10605 standards. Dual polarity test levels up to 20 or 30 kV.
Features:
- The most ergonomically designed ESD Gun
- Ultra Light Weight ESD Gun (< 700 g, the lightest one in the market)
- Integrated automatic charge removal circuit
- Ultra Large Touch Screen (5 inches)
- Great Voltage Control Stability (Single pulse better than 1%, 20 Hz pulse better than 5%)
- Unique Precision High Voltage Test Modes (for high voltage charging application or Breakdown test)
- Smart Device Under Test (DUT) Failure Level Scanning Mode (Automatic polarity change, increase pulse level per user settings)
- Optical Serial Remote Control Capability Available
- Pulse Modes: Trigger, 1Hz, 2Hz, 5Hz, 10Hz, and 20Hz
- Exchangeable RC modules for different standards (Customization Available)
