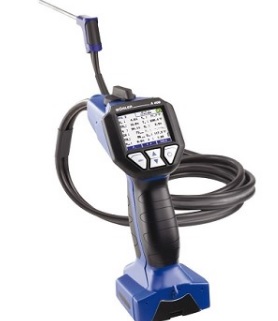

Thiết bị phân tích khí thải Wohler A 400 PRO Set 1

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị phân tích khí thải Wohler A 400 PRO Set 1

Thông tin sản phẩm

Thiết bị phân tích khí thải Wohler A 400 PRO Set 1


Wohler A 400 PRO Technical Data
Oxygen (O2)
Sensor type electrochemical
Range 0.0...21.0 Vol.-%
Resolution 0.1 Vol.-%
Accuracy ± 0.3 Vol.-%
Carbon monoxide (CO)
Sensor type electrochemical
Range 0...4,000 ppm
Resolution 1 Vol.-ppm
Accuracy ± 5 % f.m., absolute ±20 ppm
Nitric oxide (NO)
Range 0...1,000 ppm
Resolution 1 Vol.-ppm
Accuracy ± 5 % f.m., ± 5 Vol.-ppm (<100 ppm)
Draft / Differential Pressure (PD)
Unit inWC / psi / Pascal / mbar
Range ± 40 inWC
Resolution 0.004 inWC
Accuracy ± 2 % f.m., absolute ± 0.020 inWC
Flue Gas Temperature (TS)
Unit °F / °C
Sensor type thermoelement (NiCr-Ni)
Range -4 °F...1,472 °F
Resolution 0.2°F
Accuracy 32...257 °F: ± 4 °F; 257...482 °F: ± 6 °F; 482...752 °F: ± 8 °F; 252...1472 °F: ± 1.5 % f. m.
Supply Air Temperature (TA)
Unit °F / °C
Sensor type emiconductor (Si-PTC-Ni)
Range -4 °F...248 °F
Resolution 0.2 °F
Accuracy ±2 °F
Calculated Values
Effc. / SL efficiency and losses calculated in accordance to ASME standards
ETA / QS efficiency and losses calculated in accordance to EN European standards
CO2 in Vol.-% range O – CO2max, resolution 0.1%
COc CO concentration (COcorrected) air free, adjustable O2 reference level
Dew point in °C/°F
λ / EA Lambda (theoretical air), Excess Air
mCOND condensate quantity in condensing conditions
Work temperature +41 °F...104 °F to meet specifications
Storage temperature -4 °F...122 °F
Battery lifetime AA batteries > 10 h (NiMH, 2000 mAh)
Weight 1.4 lbs.
Size 8" x 3.3" x 8.7" (without probe)
Length cable-hose 67"
