| Image Processing System (LIPS SDS-E) |
| Slag Detection: |
Alarm activation when a preset percentage of either slag or steel detected within defined window
|
| User Display: |
Front page information display, plant logo and location identifier |
Frame Rate:
|
30 frames/sec |
| Automatic Functions: |
Auto tap detection, stream identification, steel/slag ratio, video file, log file of all data, steel/slag percentage graph, all saved as tap number. |
| Language: |
User defined |
| Outputs: |
Digital output card, DDE, OLE, Ethernet and OPC Options |
| Sensor Supply Unit |
Functions:
|
Local connection interface between imaging sensor and image processing system |
| Cables |
30/150/300 m pre-wired and labelled, greater distances to 1 km are available |

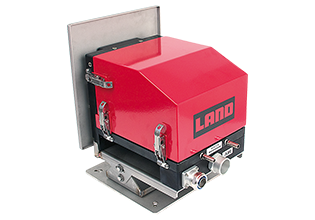

| Protective Enclosure |
| Service: |
Water, air, power input, communications, video, located to the rear of the enclosure |
| Added Protection: |
Sacrificial plate protects the main enclosure from direct impact |
| Sighting Tube: |
Design significantly reduces the risk of direct impact of liquid steel against the field replaceable sapphire window |
| Air Bleed: |
Provides positive pressure within the enclosure |
| Environmental Rating: |
IP65 |
| Thermal Imaging Sensor (SDS-E) |
| Temperature Measurement Range: |
600 to 2000 °C / 1472 to 3632 °F |
| Thermal Image Resolution: |
384 x 288 pixels |
| Detector: |
Amorphous Silicon Focal Plane Array |
| Field of View: |
7.5° (horizontal) x 5.5° (vertical) |
| Motorised Focusing Range: |
4m / 13.1 ft to infinity |
| Temperature Resolution: |
0.5 °C (for 600 °C blackbody) |
| Accuracy: |
±1% absolute temperature (K) |
Options
|
| |
Air Purge, Blower unit, Setup Monitor, Sensor Carry Case |
