- TRAX Transformer and Substation Test System is designed for primary injection testing of protective relay equipment and circuit breakers. It is also used to test the turns ratio of current transformers and for other applications that require high variable currents.

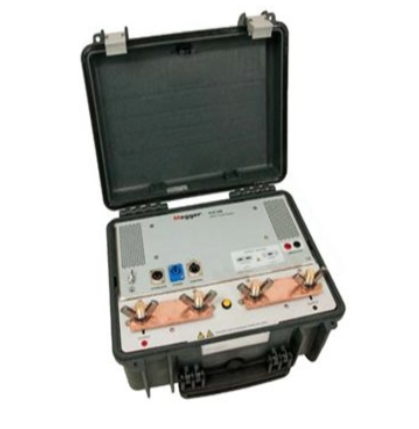

- When the high-current output of TRAX 219/220 (max 200 A) or TRAX 279/280 (max 800 A) is not sufficient, the optional accessory TCX offers currents up to 2000 A.
- Thanks to its dimensions and design, the TCX unit can be placed close to the test object, thus reducing the need for long heavy current cables. Shorter cables save time, weight and money. It also allows higher test currents.
- Designed to be placed close to the test object, thus reducing the need for long and heavy current cables
- 2000 A up to two minutes
- Compact format
- Paralell or serial configuration
- Low weight, 21 kg
