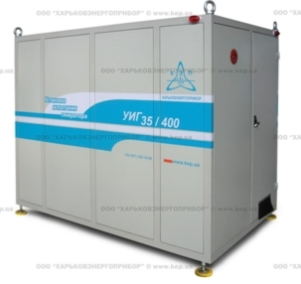

- Generator tester UIG-35/400designed for testing the dielectric strength of the hydro generators windings by line frequency AC voltage, as well as testing insulation of conductors, according to the "Rules for Electrical Installation" and RD 34.45-51.300, with a maximum load capacity of up to 400 kVA.
- Supply voltage 3-phase AC (50 Hz), V : 380 ± 38
- Consumption Power, kV∙A, max : 50
- Continuous operation at maximum capacity, minutes, max : 20
- Pause after continuous operation, min, min : 40
- Power output, kVA : 400
- Range of objects under the test capacities, µF : 0,01 - 1,0
- Q-factor, min : 35
- Present error of measurement of current and voltage, max, % : 3
- Operation threshold of protection current of the high voltage-side, A, max : 13
- Operation threshold of protection current of the low-voltage side, A, max : 120
- AC output voltage at test hydro, kV : 35
- Dimensions L × W × H, mm : 2500 × 2000 × 1800
- Weight, kg, max : 3000
