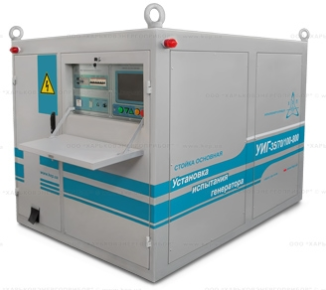

- Generator tester UIG-35/70/100-800 designed for testing the dielectric strength of the generators windings, bus systems by line frequency AC voltage, test leakage on rectified voltage in accordance with the requirements of "Regulations for Electrical" and RD 34.45-51.300, with a maximum load capacity of up to 800 kVA.
- Supply voltage 3-phase AC (50 Hz), V : 380 ± 38
- Consumption power, kVA, max : 45
- Continuous operation at maximum capacity, min, max : 20
- Break after continuous use, min, min : 40
- Output power, kVA : 800
- Capacitance range of objects test, uF : 0,01 - 1,8
- Q-factor, min : 45
- Greatest operating voltage AC test mode stator winding, kV : 35
- Greatest operating voltage AC test mode trunking, kV : 70
- Greatest operating voltage of the rectified current-leakage test, kV : 100
- Reduced error measuring current and voltage, max, % : 3
- Threshold protection high-voltage side, A : 25
- Threshold protection low-voltage side, no more, A : 120
- Dimensions L × W × H, mm : 2200×1700×1760
- Warranty life, h : 1200
- Weight, kg, no more : 3000
