Thiết bị thử nghiệm rung động Labworks dLW127.153-500D12 DuoBase System

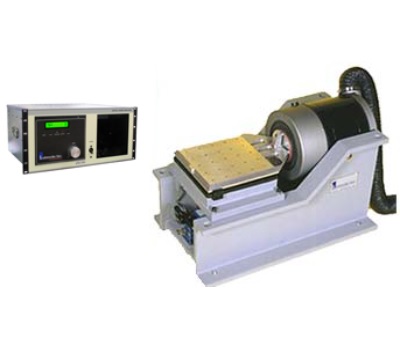

The dLW127.153-500D12 is the largest of the current family of Labworks vibration test systems featuring our dLAB series high efficiency digital switch mode shaker amplifier and DuoBase slip table. Its large 12 inch square oil film slip table mounting surface provides high load and off-center moment capability for applications where heavy or large loads are to be tested. The DB-127 also allows the ET-127 shaker to be uncoupled from the slip table and rotated into its vertical position allowing normal vertical testing of smaller components directly on the shakers armature. The shakers internal high lateral stiffness carbon composite armature suspension reduces problems associated with off-center loads when operating vertically. The ET-127 Shaker in this system is equipped with a degauss coil to ensure low stray magnetic field for sensitive applications. The air cooled dPA-153 dLAB shaker amplifier delivers full system performance while minimizing power and amplifier cooling requirements. The amplifier's multi-function digital display provides amplifier operational status as well as system peripheral and complete vibration system operational diagnositcs. Built in shaker-specific current limiting and full internal, system and external electrical interlock connections and logic help protect the system and test specimen from accidental abuse
