| General Specifications |
| Sine force |
9.0 lbs force pk |
| Random force |
7.0 lbf rms random |
| Shock force |
21 lbf pk shock |
| Frequency Range: |
DC to 14,000 Hz |
| Maximum Acceleration: |
26 g pk, bare table
16 g pk, 0.2 lb. load
10.5 g pk, 0.5 lb. load |
| Maximum Displacement: |
0.50 inch pk-pk, bare table |
| Cooling: |
Amplifier: natural convection
Shaker: natural convection |
| Power Requirements: |
300 VA @ 100, 115, 220, or 230V, single phase 50/60 Hz |

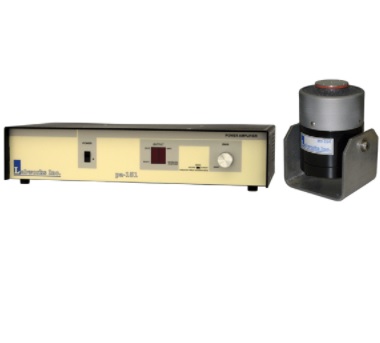

| System Components |
| ET-126HF-4 Electrodynamic Shaker |
| PA-151 Linear Power Amplifier |
| Interconnect Cables and Hoses |
|
 |
