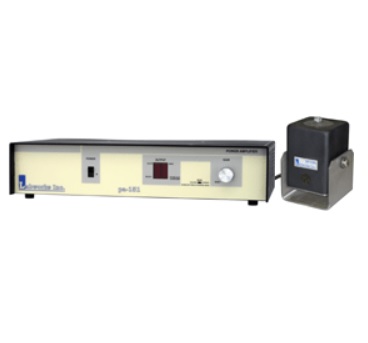

Specify the LW132.203.151-4.5 system when a light-weight, portable system with maximum high frequency is desired for the general purpose testing and calibration of small components. This system is popular because of its low mass armature, high frequency capability, enhanced random vibration performance, and it is one of the smallest shakers available that is capable of DC (linear actuator) operation.
|
| General Specifications |
| Sine force |
4.5 lbs force pk |
| Random force |
3.2 lbf rms random |
| Shock force |
9.6 lbf pk shock |
| Frequency Range: |
DC to 11,000 Hz |
| Maximum Acceleration: |
64 g pk, bare table
26 g pk, 0.1 lb. load
9.6 g pk, 0.4 lb. load |
| Maximum Displacement: |
0.20 inch pk-pk, bare table |
| Cooling: |
Amplifier: natural convection
Shaker: natural convection |
| Power Requirements: |
300 VA @ 100, 115, 220, or 230V, single phase 50/60 Hz |
| System Components |
| ET-132-203 Electrodynamic Shaker |
| PA-151 Linear Power Amplifier |
|
 |
|
