Thiết bị thử nghiệm rung động Labworks LW140.141-110D6 DuoBase System

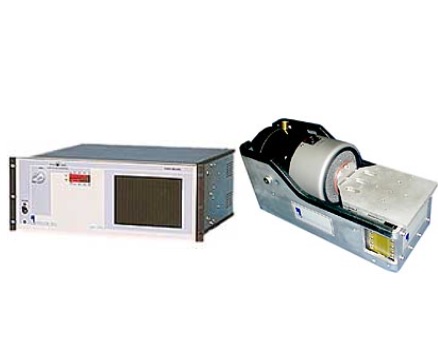

The LW140.141-110D6 Flexure Table system combines our ET-140 shaker and PA-141 linear amplifier together with our 6 inch square Flexure suspension Table. This combination provides a large mounting surface with increased load carrying capacity for larger or heavier than normal test specimens not requiring the force of a larger Shaker system. The unique flexure suspension table guidance eliminates the requirement for the oil found in slip table systems. This oil-less design allows operation at other than the horizontal orientation, and adds increased suspension guidance reducing the effects of heavy and off-center loads on the shakers armature suspension system.. The Table flexures are fully rated for 1 inch p-p operation, and the shaker can be uncoupled from the table for operation in its normal vertical orientation with specimens mounted directly to the shakers armature.

The air cooled PA-141 linear amplifier is direct coupled to the shaker to give the maximum performance at low and high frequencies. Dual meters display the system operating levels and complete shaker and user interlocks help protect the system from accidental abuse.
