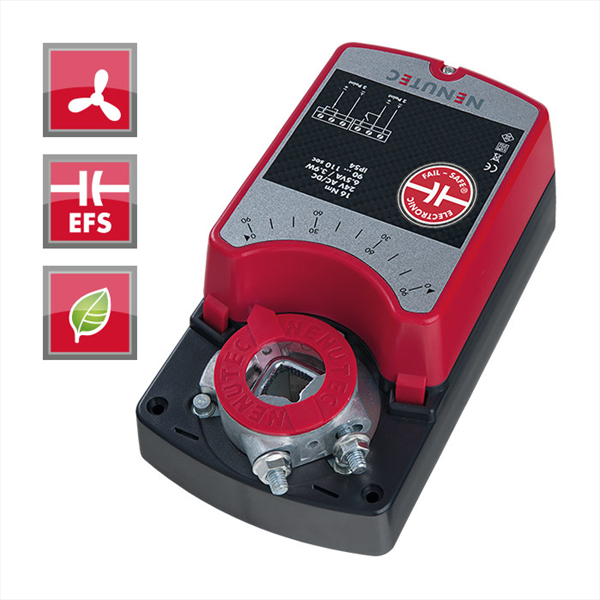

Thiết bị truyền động Nenutec fsaa24 24 fsaa24 24s fsam2301 08 fsam2301 08s fsam2301 16 fsam2301 16s
Rotary valve actuators with Electronic Fail-Safe® (EFS®) func- tion are designed and produced for extended functionalities in HVAC systems fan coil and laboratory applications.
Electronic Fail-Safe® (EFS®) is able to manage short voltage interruptions for max. 4 seconds. In case of longer voltage interruption they will move the 2 - 3 way valves if necessary to a pre-defined emergency position (EPS).
Specifications
- Modell / Type FSAA24-24
- Torque 24 Nm
- Power supply AC/DC 24V
- 2 Point control
- Damper size 4.5 m²
- Schaft dimension
10 to 20 mm round / 10 to 16 mm square
Minimum shaft length 50 mm
- Digital greentech technology
- Selectable direction of rotation by switch
- Actuator with 1000 mm cable connection
- Customer version (on request)
