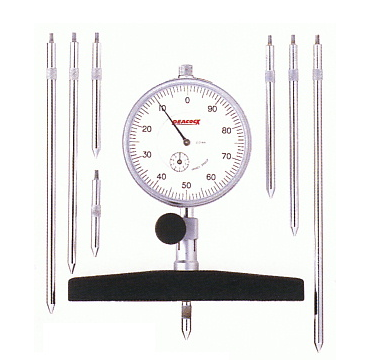

It measure a depth from top bottom of bottomed holes, a depth of narrow grooves, a value of step height of stepped surfaces and a depth of types engraved in matrices. The dial gauge furnished offers a correct measured value since it can measure an object under measurement with a given measuring force.
|
Specifications
|
|
Model
|
Range
(mm)
|
Accuracy
(µm)
|
Dial Gauge
|
Base
|
|
Gauge
installed
|
Graduation
(mm)
|
Range
(mm)
|
Measuring force
less than (N)
|
Length (mm)
|
Width (mm)
|
|
T-1
|
0 - 160
|
±20
|
207F-T
|
0.01
|
20
|
2.0
|
120
|
14
|
|
T-1W
|
0 - 220
|
±20
|
207WF-T
|
0.01
|
20
|
2.0
|
100
|
11
|
|
T-2
|
0 - 10
|
±15
|
107F-T
|
0.01
|
10
|
1.4
|
60
|
14
|
|
T-2W
|
0 - 20
|
±20
|
207WF-T
|
0.01
|
20
|
2.0
|
75
|
11
|
|
T-2B
|
0 - 5
|
±20
|
196B-T
|
0.01
|
5
|
1.4
|
75
|
11
|
|
T-2C
|
0 - 10
|
±15
|
107F-T
|
0.01
|
10
|
1.4
|
75
|
11
|
|
T-3
|
0 - 10
|
±15
|
107F-T
|
0.01
|
10
|
1.4
|
60
|
Shown in figure
|
|
T-4
|
0 - 1
|
±5
|
5F
|
0.001
|
1
|
1.5
|
40
|
10
|
|
T-6A
|
0 - 10
|
±15
|
107F-T
|
0.01
|
10
|
1.4
|
Ø25
|
|
T-6B
|
0 - 10
|
±15
|
107F-T
|
0.01
|
10
|
1.4
|
Ø25
|
