Construction

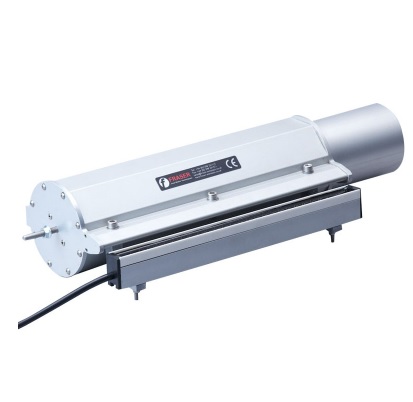

Air Knife: aluminium. 1250-S Static Eliminator Bar (see separate Datasheet).
Dimensions
Compact and Standard options available. See Datasheet for details.
Cable
Hi-Flex 30 kV screened cable with 70 mm bend diameter. Standard length is 2 m - longer lengths can be specified at time of order (subject to maximum load on power unit).
Safety
5 mA maximum current from Power Unit. High voltage resistance inside bars further limits current below 50 μA.
Power Unit
Use with Fraser 5.5 kV and 6 kV Power Units. See Datasheets.
Air Supply
Various kW blowers to suit length of air knife (knives). Air speed 110 m/sec at slot in air knife.
Environmental
1250-S Static Eliminator Bar: 60 °C maximum temperature. 70 % rH non-condensing max. IP66. Fully sealed.
Certification
CE.
Options
ATEX EX version - see EX-1250 EX Static Eliminator. UL (US and C) Listing is a free of charge option for the 1250-S and EX-1250 Static Eliminator Bars. 24 V DC Static Eliminator options.
