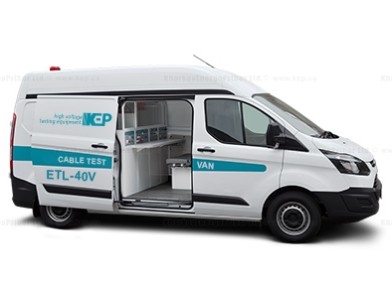

- Cable Test Van ETL-40V is a modular diagnostic and test equipment, which is designed for testing and fault location of both LV and MV cables. The key parameters are designed flexible to satisfy customer’s specific requirements.
- DC cable testing up to 40 kV with 300 mA max. current;
- Burning up to 20 kV / 1 A;
- Surge energy up to 2400 J;
- Precise fault prelocating using Time‑Domain Reflectometer RIF‑9 working in:
- TDR mode;
- Arc-Reflection mode;
- Impulse Current Mode;
- Voltage coupling mode;
- Automatic test procedure;
- Fault location using step voltage mode (optional).
