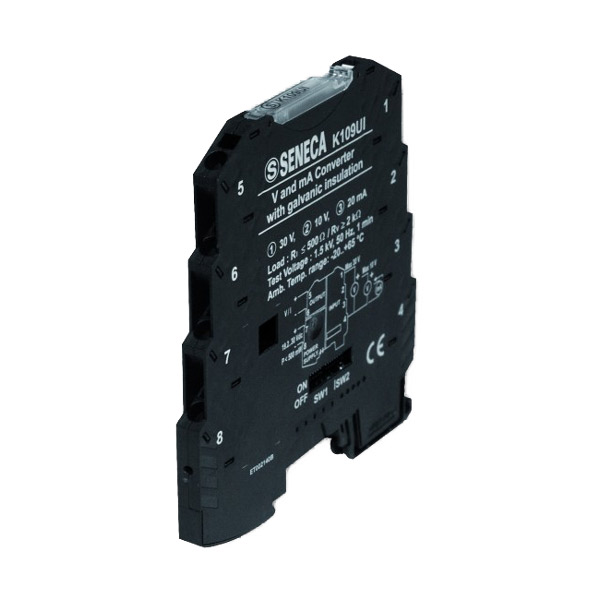

DC to DC Isolated Signal Conditioner
Field Configurable
K109UI $169 *in stock*
Open Datasheet
Download Datasheet
Open Installation Manual
Download Installation Manual
Click to see ALL Seneca products
|
Field Configurable Input
Input: 0-20 mA, 4-20 mA,
0-5 VDC, 1-5 VDC, 0-10 VDC, 2-10 VDC,
0-15 VDC, 0-30 VDC
Field Configurable Output
Output: 4-20 mA, 0-20 mA, 20-4 mA, 20-0 mA,
0-5 V, 1-5 V, 0-10 V, 10-0 V
|
- Only 6.2 mm wide
- DIP switch configuration
- Full 3-way isolation
- Low cost
- DIN rail mount without tools
- Power: 19.2-30 VDC or K-SUPPLY+KBUS

|
K109UI
|
DC to DC Isolated Transmitter
with Sink/Source Input
Field Configurable
K109S $169 *in stock*
Open Datasheet
Download Datasheet
Open Installation Manual
Download Installation Manual
Click to see ALL Seneca products
|
Field Configurable Input
Input: 4-20 mA, 0-20 mA, 20-4 mA, 20-0 mA,
0-5 V, 1-5 V, 0-10 V, 10-0 V
Field Configurable Output
Output: 4-20 mA, 0-20 mA, 20-4 mA, 20-0 mA,
0-5 V, 1-5 V, 0-10 V, 10-0 V
|
- Only 6.2 mm wide
- DIP switch configuration
- Full 3-way isolation
- Low cost
- DIN rail mount without tools
- Power: 19.2-30 VDC or K-SUPPLY+KBUS
|
K109S
|
Universal Input to 4-20 mA Loop Powered Transmitter
Field Programmable
K121 $149 *in stock*
Open Datasheet
Download Datasheet
Open Installation Manual
Download Installation Manual
Click to see ALL Seneca products
|
Field Programmable Input
Input: –150 mV to +150 mV
–30 V to +30V
–24 mA to 24 mA
RTD: Pt100, Pt500, Pt1000, Ni100
Thermocouple: J, K, T, E, R, S, B, N
Potentiometer: 500 Ω to 10 KΩ
Resistance: 1750 Ω
Output: 4-20 mA loop powered
Powered by the output loop
|
- Only 6.2 mm wide
- PC programmable configuration
- Full 2-way isolation
- Low cost
- DIN rail mount without tools
- Powered by 4-20 mA loop
|
K121
|
Thermocouple to DC Isolated Transmitter
Field Configurable
K109TC $169 *in stock*
Open Datasheet
Download Datasheet
Open Installation Manual
Download Installation Manual
Click to see ALL Seneca products
|
Field Configurable Input
Input: Thermocouple: J, K, T, E, R, S, N, B
Field Configurable Output
Output: 4-20 mA, 0-20 mA, 20-4 mA, 20-0 mA,
0-5 V, 1-5 V, 0-10 V, 10-0 V
|
- Only 6.2 mm wide
- DIP switch configuration
- Full 3-way isolation
- Low cost
- DIN rail mount without tools
- Power: 19.2-30 VDC or K-SUPPLY+KBUS
|
K109TC
|
100 Ω RTD to DC Isolated Transmitter
Field Configurable
K109PT $169 *in stock*
Open Datasheet
Download Datasheet
Open Installation Manual
Download Installation Manual
Click to see ALL Seneca products
|
Field Configurable Input
Input: One 100 Ω RTD, 385 Curve RTD, 2, 3, or 4 wire
–150 to 650°C, (–238 to 1202°F), 50°C min. span
Field Configurable Output
Output: 4-20 mA, 0-20 mA, 20-4 mA, 20-0 mA,
0-5 V, 1-5 V, 0-10 V, 10-0 V
|
- Only 6.2 mm wide
- DIP switch configuration
- Full 3-way isolation
- Low cost
- DIN rail mount without tools
- Power: 19.2-30 VDC or K-SUPPLY+KBUS
|
K109PT
|
RS-485 to RS-485 or
RS-232 to RS-485
Repeaters/Isolators/Amplifiers
K107A $159
K107B $159 *in stock*
Open Datasheet
Download Datasheet
Open Installation Manual
Open Installation Manual
Click to see ALL Seneca products
|
K107A RS-485 to RS-485
Data X: One RS-485 half duplex
Data Y: One RS-485 half duplex
K107B RS-232 to RS-485
Data X: One RS-232 half duplex
Data Y: One RS-485 half duplex
|
- Only 6.2 mm wide
- DIP switch configuration
- Full 3-way isolation
- Low cost
- DIN rail mount without tools
- Power: 19.2-30 VDC or K-SUPPLY+KBUS
|

K107A K107B
|
USB - UART TTL Converter
EASY-USB $109 *in stock*
Open Datasheet
Download Datasheet
Open Installation Manual
Download Installation Manual
EASY-USB Software Link
|
Programming kitK121
K121
|
Includes
Converter
Software mini CD (or download latest)
Adapter cable (std USB cable not included)
|
EASY-USB
|
K-SUPPLY and KBUS Power Supply
for K-Series Modules
K-SUPPLY $89 *in stock*
KBUS $15 *in stock*
Open Datasheet
Download Datasheet
Open Installation Manual
Download Installation Manual
Click to see ALL Seneca products
|
Regulated Power Distribution
Input: 19.2 to 30 VDC
Output: 19.2 to 30 VDC
|
- Only 6.2 mm wide
- Power supply distribution
- Regulated and isolated
- Low cost
- DIN rail mount without tools
- Power: any 19.2-30 VDC supply
|

K-SUPPLY K-BUS
|
4 Digit 4-20 mA Loop Powered Display
Field Rangeable
S315 $139 *in stock*
S315-IP66 $300
Open Datasheet
Download Datasheet
Open Installation Manual
Download Installation Manual
Click to see ALL Seneca products
|
Loop Powered Display
Input: 4-20 mA
Display: 4 digit red LED
|
- 1/8 DIN panel mount or IP66 housing
- Scaleable 4 digit display
|
 |
