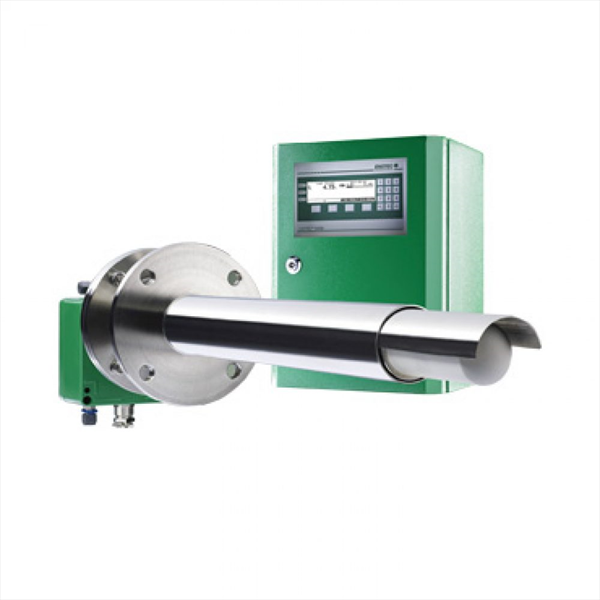

Cảm biến đo khí Oxy Kansai OXITEC5000, OXITEC5000 Ex

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Cảm biến đo khí Oxy Kansai OXITEC5000, OXITEC5000 Ex

    Yêu cầu giá tốt:

    0984.843.683.

    Email: info@ttech.vn

Thông tin sản phẩm

Cảm biến đo khí Oxy Kansai OXITEC5000, OXITEC5000 Ex


Standard Specification
Model OXITEC5000/OXITEC5000 Ex Electronic Unit
Display LCD・LED
Indication System error,maintenance
Measuring Range 2 measuring ranges,0-99% adjustable
Power Source 115~230VAC 50/60Hz
Power Consumption 100-200VA(400VA at start-up)
Output 0/4-20mA max.500Ω resistance load
Relay contact System error,maintenance
Upper limit,Lower limit
RS232C,RS485,bus compatible
Contact capacity 230VAC 5A Resistance load
Temperature -20~+55℃
Enclosure Rating IP66
Model OXITEC5000 Sensor OXITEC5000 Ex Sensor
Sensitivity Below 1ppm O2 Below 1ppm O2
Accuracy ±0.2%(from measured value) ±0.2%(from measured value)
Allowable Pressure -50~+4000mbar -50~+4000mbar
Velocity 0~50m/sec 0~50m/sec
Allowable Temperature Around:-40~+80℃
Temperature inside the exhaust gas pipe.:
Max.600℃(Standard)
Max.1000℃(Heat resistant model for middle high temperature)
Max.1400℃(Heat resistant model for high temperature)
Around:-40~+80℃
Temperature inside the exhaust gas pipe.:
Max.500℃(Standard)
Max.1400℃(Heat resistant model for high temperature)
Enclosure Rating IP65 IP65
Probr Material 316SS
Option:Hastelloy、V4A、Incoloy、Protec
316SS
Option:Hastelloy、V4A、Incoloy、Protec
Responsiveness 0.5sec(about Velocity:10m/sec) 0.5sec(about Velocity:10m/sec)
Cable length Max.150m Max.150m
