Đồng hồ đo lực kéo nén Digitech DTG-1, DTG-2

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Đồng hồ đo lực kéo nén Digitech DTG-1, DTG-2

    Yêu cầu giá tốt:

    0984.843.683.

    Email: hien@ttech.vn

Thông tin sản phẩm

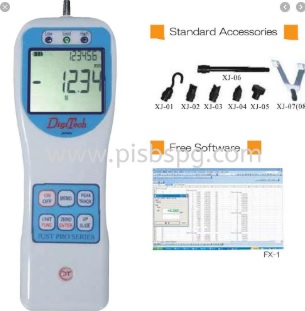

Đồng hồ đo lực kéo nén Digitech DTG-1, DTG-2


Measuring shaft M6
Measuring accuracy ±0.2% F.s
Measuring unit N, kgf(gf), lb
Measuring cycle 1ms, 5ms, 16ms, 50ms (selectable)
Display renewal cycle 1, 2, 5, 10, 20times /sec (selectable)
Communication method USB mini B
Memory 1000 data
External input Mitutoyo digimatic input, pulse input.(displacement meter)point ON,OFF load detection input.
Printer output Serial output,Mitutoyo digimatic output.
Output for test stand Load setting /displacement setting method UP,DOWN,STOP output.overload output(open collector output)
Analog output ±2V / f.s(load value only)
Tolerance judgment output LOW・GOOD・HIGH LED lighting and output.(open collector output)
Display H45mm×W50mm LCD. Load: 6digit, Displacement: 7digit. Battery remain quantity.
Dimension H220mm×W74mm×D37mm
Weight approx. 500g
Operationtemperrature 0℃~+40℃
Power source Ni-MH battery. AC100V~240V multi AC adapter.
Standard accessory 6pcs jig. A multi AC adapter.USB cable.Carrying case.Operation manual.Test Certificate

※Specifications are subject to change without notice.

DTG series Another model list

Model DTG-1 DTG-2 DTG-5 DTG-10
Capacity 10N
(1kgf)
20N
(2kgf)
50N
(5kgf)
100N
(10kgf)
Resolution 0.001N
(0.1gf)
0.01N
(1gf)
0.01N
(1gf)
0.01N
(1gf)
Model DTG-20 DTG-50 DTG-100
Capacity 200N
(20kgf)
500N
(50kgf)
1000N
(100kgf)
Resolution 0.1N
(10gf)
0.1N
(10gf)
0.1N
(10gf)
