| Model |
eZT |
| Accuracy |
+/-0.2%F.S. (*1) |
| Unit of measurement |
Depends on load cell and settings
(N, kN, kgf, lbf N-m, N-cm, kgf-m, kgf-cm, lbf-in, ozf-in) |
| Display |
4-digit |
| Display update |
16 / sec |
| Sampling rate |
2000 data / sec at maximum (*2) |
| Battery |
8 hours (2 hours charge) (*3) |
| Operating environment |
Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH |
| Functions |
Customized display (header and footer), Peak hold (tension and compression), Internal 1000 points data memory,
Comparator (judgment of OK or NG), Reversible display, Sign inversion, Zero clear timer, +NG alarm,
Off timer (auto power off), Dumping,Time display, 1st/2nd peak,Displacement detection at force peak value,
Displacement zero reset at selected force, setting lock |
| Output |
USB, RS232C, Mitutoyo digimatic (*4), 2 VDC analog output (D/A),
Comparator 3 steps (-NG/OK/+NG), Overload alarm, Sub comparator 2 steps (output of large or small judgment),
USB flash drive, Displacement. |
| Overload warning |
Approx.110%F.S. (Warning message and alarm ) |
| External connecting switch |
SEND (a point of contact holding), Zero reset, Peak ON/OFF setting |
| Available liner scales (*5) |
– Online driver output
(a line receiver according to RS422/485 must be built in.) |
– Open collector output
(Voltage drop between contacts must be smaller than 0.5V.) |
| Weight |
Approx. 490g |

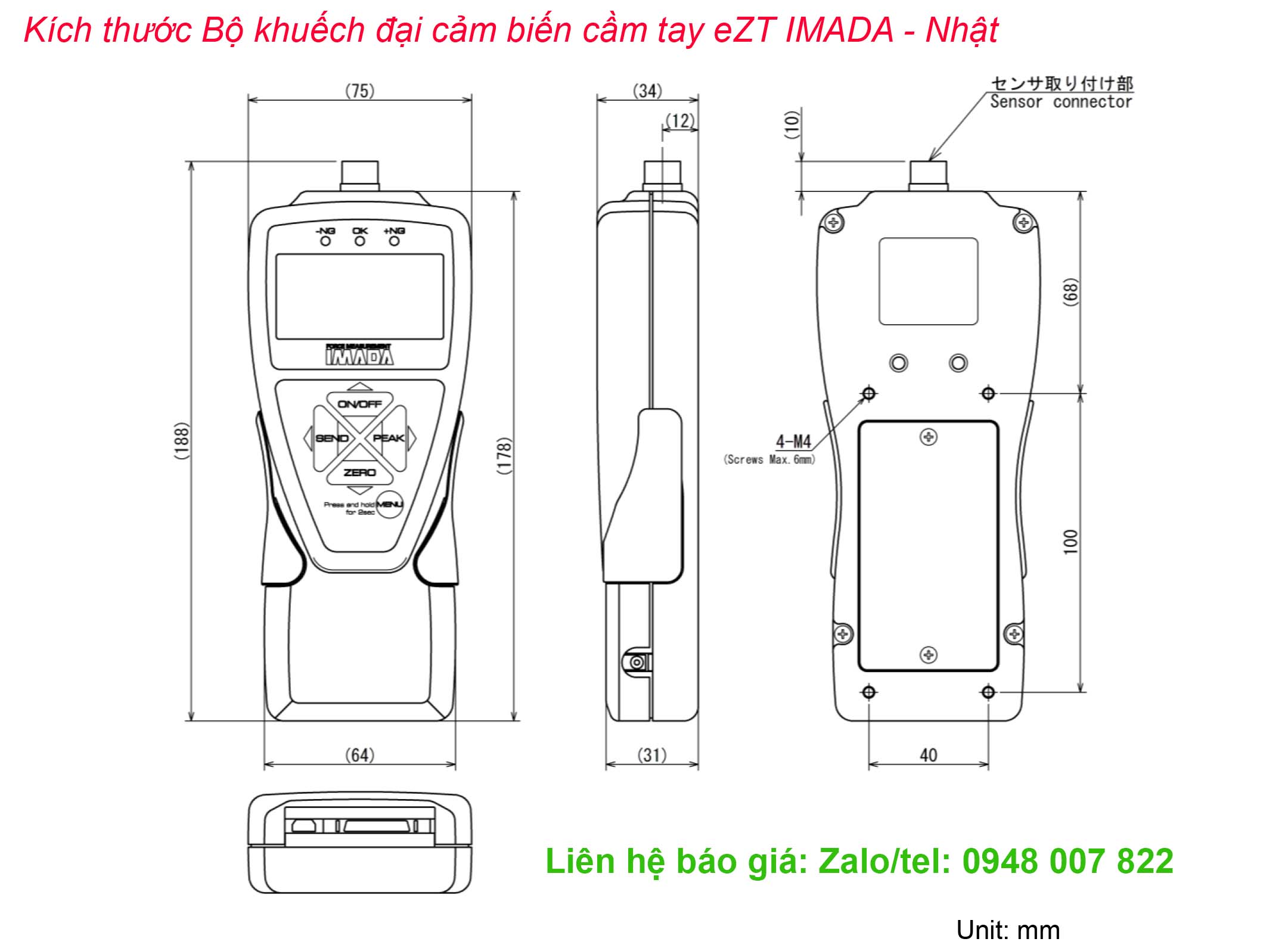

| Dimensions |
Please refer to dimensions. |
| Accessories |
AC adapter, CD driver (including simple software for data logging),
USB cable, Carrying case, Adaptor for USB flash drive (*6) |
