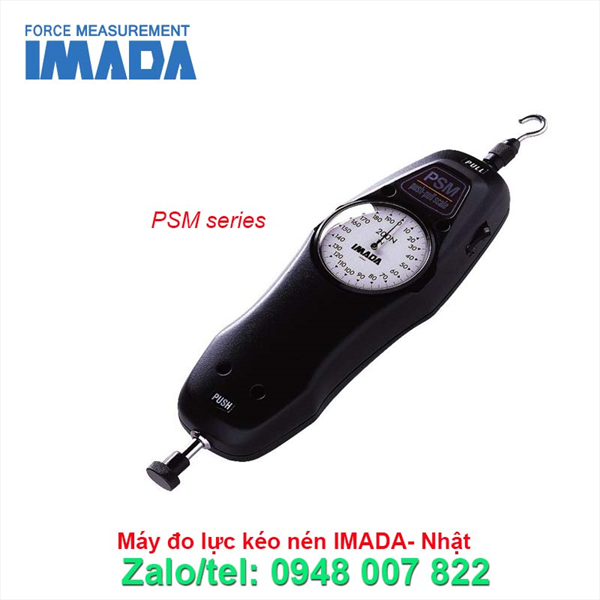

Đồng hồ đo lực kéo nén Imada PSM-200N, PSM-300N, PSM-500N
Specifications for Presision Model Mechanical Force Gauge PSM series
| Model |
PSM series |
| Accuracy |
+/-0.1% F.S |
| Stroke |
10mm |
| Unit of measurement |
Please refer to the table below |
| Reading method |
Real-time track or Peak-hold |
| Divisions |
200lines* |
| Operating temperature |
0 to +40 degree Celcius |
| Weight ** |
Approx. 660g(PSM-300N) |
| Accessory |
8 kinds of attachments,Inspection certificate,
Instruction manual, Carrying case |
*30N, 300N, 3K, 30K: 150 divisions.
**Weight varies according to the capacities even in the same series, so we note the weight of the most representative one.
Model table of PSM series Precision Model Mechanical Force Gauge
| Model |
Capacity |
1 division |
Thread |
| PSM-20N |
20N |
0.1N |
M6 |
| PSM-30N |
30N |
0.2N |
| PSM-50N |
50N |
0.25N |
| PSM-100 N |
100N |
0.5N |
| PSM-200N |
200N |
1N |
| PSM-300N |
300N |
2N |
| PSM-500N |
500N |
2.5N |
| Model(NOT available in Japan) |
Capacity |
1 division |
Thread |
| PSM-2K |
2kgf |
10gf |
M6 |
| PSM-3K |
3kgf |
20gf |
| PSM-5K |
5kgf |
25gf |
| PSM-10K |
10kgf |
50gf |
| PSM-20K |
20kgf |
100gf |
| PSM-30K |
30kgf |
200gf |
| PSM-50K |
50kgf |
250gf
|
