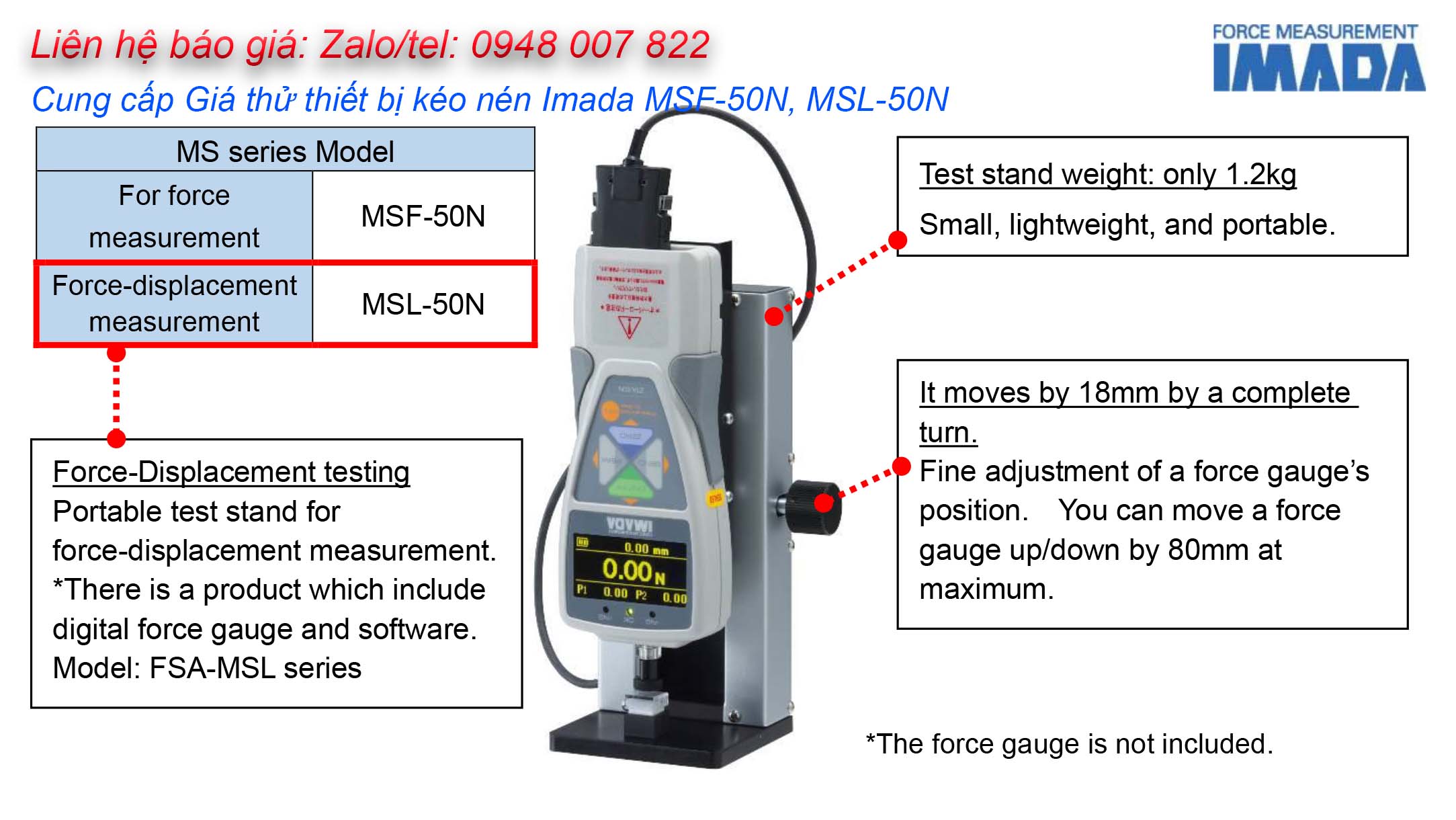

| Feature |
standard |
with liner scale |
| Capacity |
50N (5kgf) |
| Stroke (*2) |
Approx. 44mm at maximum |
| Travel method |
Manual; knob |
| Travel of a mounted force gauge |
18mm per 1 complete turn |

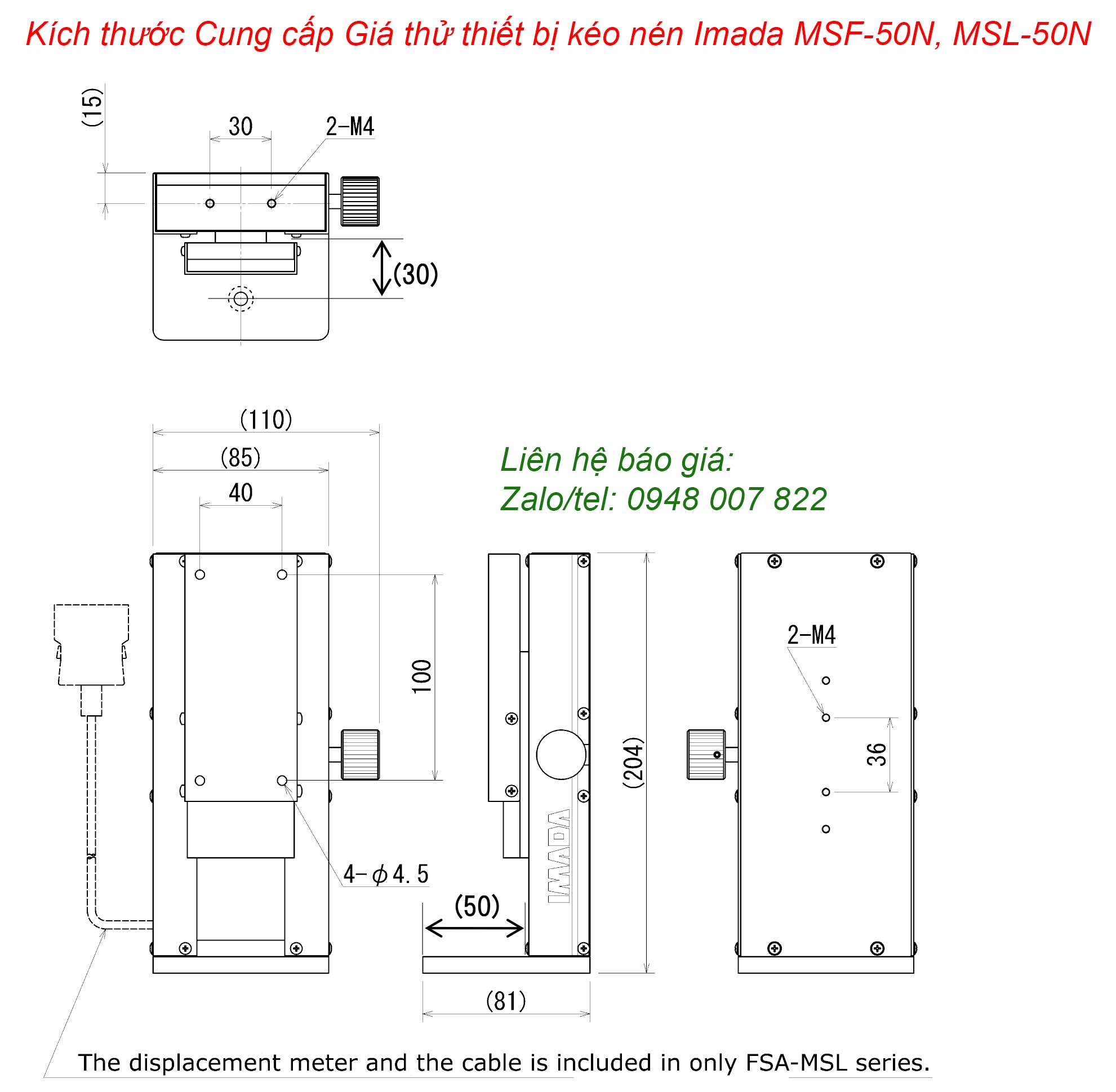

| Dimensions (mm) |
Approx. H204 W109.4 D72 |
| Weight |
Approx.1.2kg |
| Accessory |
Attachment mounting plate, Screws to mount a gauge, Tools, Instruction manual |
| Option |
Handle, Adaptor to change the size of screw hole |
Mountable
force gauges (*3) |
Digital Force Gauge:
DST, DSV, ZTS, ZTA series |
Digital Force Gauge:
ZTA series |
