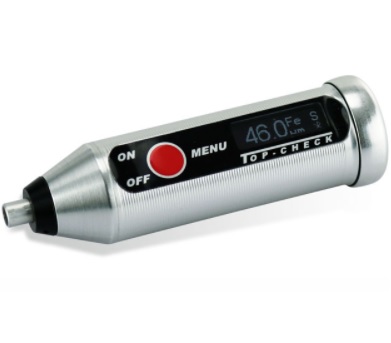

Technical Data Coating Thickness Meter TOP-CHECK FE-1000
|
| Applications: |
Measurement of paint, varnish, plastic, anodized and galvanic coatings on steel (ISO 2178) |
| Measuring probe: |
sensing device, springy |
| Measuring range: |
on steel and iron: 0-1000 μm |
| Smallest Area: |
ø 2 mm |
| Smallest curvature radius: |
convex: 1 mm, concave: 6 mm |
| Calibration value: |
300 µm |
| Accuracy: |
less than 100 µm ± 1 µm, > 100 µm: ± 1 % |
| Resolution: |
1-100 µm: 0.1 µm, > 100 µm: 1 µm |
| Measuring units: |
μm and mils |
| Environment temperature: |
0 - 50° C |
| Display: |
illuminated high contrast graphic OLED display |
| Multi-lingual menu: |
German, English |
| Power supply: |
1x 1.5 V AA Mignon |
| Operating time: |
approx. 30 hours |
| Dimensions: |
Ø 28 x 94 mm |
| Weight: |
72 g (with battery) |
