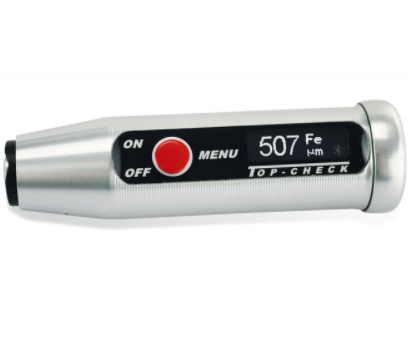

Máy đo chiều dày lớp phủ sơn mạ List-Magnetik TOP-CHECK

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy đo chiều dày lớp phủ sơn mạ List-Magnetik TOP-CHECK

Thông tin sản phẩm

Máy đo chiều dày lớp phủ sơn mạ List-Magnetik TOP-CHECK


echnical Data Coating Thickness Meter TOP-CHECK

Applications: Measurement of paint, varnish, plastic and galvanic coatings on steel (ISO 2178)
with TOP-CHECK FN and FN-B also measurement of insulating layers on non-ferrous metals (ISO 2360) with automatic detection of base material
Measuring probe: swivel-mounted 90°
Measuring range: TOP-CHECK FE and TOP-CHECK FN on steel and iron: 0-5000 μm
TOP-CHECK FN on NFE metals 0-2000 μm
Smallest Area: TOP-CHECK FE ø 4 mm, TOP-CHECK FN ø 8 mm
Smallest curvature radius: convex: TOP-CHECK FE 4 mm, TOP-CHECK FN 6 mm
concave: 38 mm
Calibration value: 300 µm
Accuracy: less than 100 μm ± 1 μm, 100-1000 μm: ± 1%, 1000-2000 μm: ± 3%,> 2000 μm: ± 5%
Resolution: 1-100 µm: 0.1 µm, 100-1000 µm: 1 µm, > 1000 µm: 10 µm
Measuring units: µm and mils
Environment temperature: 0 - 50° C
Display: illuminated high contrast graphic OLED display
Multi-lingual menu: German, English
Power supply: 1x 1.5 V AA Mignon
Operating time: approx. 30 hours
Dimensions: Ø 28 x 98 mm
Weight: 72 g (with battery)
The devices TOP-CHECK FE-B and FN-B offer additionally:
Data logger: 2 x 500 measurements
Statistics: Count / Maximum / Minimum / Average / Standard deviation
Interface: Bluetooth interface class 2
for communication with PC, TOP-CHECK App and printer
