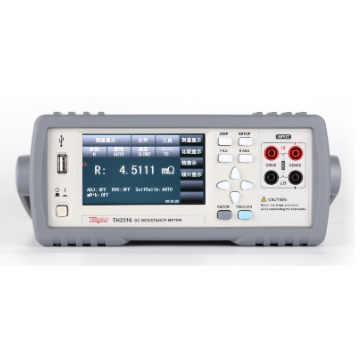

Máy đo điện trở thấp bằng dòng điện 1 chiều hãng Tonghui TH2518, TH251A, TH2515, TH2516, TH2516A, TH2516B, TH2512, TH2512A, TH2512B, TH2511

■ Resistance range: 10uΩ - 200kΩ

■ Highest accuracy: 0.05%, resolution: 10uΩ

■ Temperature accuracy: 0.2 °C

■ Highest test speed: 600 times/s

■ Up to 90-channel resistance/temperature scan tests

■ Temperature compensation function (TC)

■ One-click screen capture function

■ Data logging function

■ The adopted test end of the scan test channel is

   programmable

■ Support 6 units for free insertion and removal,

   simultaneous measurement between test units

■ Temperature measurement can support PT100, PT500

   and analog voltage three temperature sampling methods

■ 4.3 inch 24-color touch LCD screen with 480 × 272 resolution

■ Chinese and English optional operation interface

■ Compatible with scanning and stand-alone measurement

   modes

■ Automatic upgrade of instrument operating software via

   USB HOST

■ Comparison sort results of channel, board and

   machine-level can be output

■ Handler interface for online operations

■ Resistance range: 10uΩ - 200kΩ

■ Highest accuracy: 0.05%, resolution: 10uΩ

■ Highest test speed: 600 times/s

■ One-click screen capture function

■ Data logging function

■ The adopted test end of the scan test channel is

   programmable

■ Support 6 units for free insertion and removal,

   simultaneous measurement between test units

■ 4.3 inch 24-color touch LCD screen with 480 × 272 resolution

■ Chinese and English optional operation interface

■ Compatible with scanning and stand-alone measurement

   modes

■ Automatic upgrade of instrument operating software via

   USB HOST

■ Comparison sort results of channel, board and

   machine-level can be output

■ Handler interface for online operations

■ Resistance range: 0.1μΩ - 110MΩ

■ Highest accuracy: 0.01%, resolution: 0.1μΩ

■ Temperature accuracy: 0.1℃

■ Highest sampling rate: 10ms

■ 24 bits, 4.3-inch and 4-wire touch LCD screen, resolution:

   480×272

■ Intelligent detection for test state error

■ Multiple measurement combinations of R, LPR, T

■ Low-voltage test mode, effectively protects DUT

■ Temperature conversion(Δt)

■ Temperature compensation(TC)

■ Offset voltage compensation(OVC)

■ Customer self-correction(0 ADJ)

■ Statistics function: CpK, Cp

■ Simultaneously output compare results of 10 bins

   (OVER, PASS and BEEP)

■ 30 groups of parameter files can be saved and loaded

■ Screen information can be stored on U-disk

■ Data save function brings convenience for

   saving measurement result

■ Automatically update operation software through USB HOST

■ Operation languages: Chinese and English

■ Flexible and convenient file operation system

■ Handler interface realizes on-line operation.

■ Interfaces such as RS232, USB HOST, USB Device and

   LAN are available and GPIB is optional.

■ Compatible with LXI C standard Specifications

■ Resistance range: 1μΩ - 2MΩ

■ Highest accuracy: 0.05%, resolution: 1μΩ

■ Temperature accuracy: 0.2℃

■ Highest sampling rate: 20ms

■ 24 bits, 4.3-inch and 4-wire touch LCD screen, resolution:

   480×272

■ Multiple measurement combinations of R, LPR, T

■ Low-voltage test mode, effectively protects DUT

■ Temperature conversion(Δt)

■ Temperature compensation(TC)

■ Offset voltage compensation(OVC)

■ Customer self-correction(0 ADJ)

■ Statistics function: CpK, Cp

■ Simultaneously output compare results of 10 bins

   (OVER, PASS and BEEP)

■ 30 groups of parameter files can be saved and loaded

■ Screen information can be stored on U-disk

■ Data save function brings convenience for

   saving measurement result

■ Automatically update operation software through USB HOST

■ Operation languages: Chinese and English

■ Flexible and convenient file operation system

■ Handler interface realizes on-line operation.

■ Interfaces such as RS232, USB HOST, USB Device, and

   Handler

■ Compatible with LXI C standard Specifications

■ Resistance range: 10μΩ - 200kΩ

■ Highest accuracy: 0.05%, resolution: 1μΩ

■ Highest sampling rate: 20ms

■ 24 bits, 4.3-inch and 4-wire touch LCD screen, resolution:

   480×272

■ Multiple measurement combinations of R, LPR, T

■ Low-voltage test mode, effectively protects DUT

■ Offset voltage compensation(OVC)

■ Customer self-correction(0 ADJ)

■ Statistics function: CpK, Cp

■ Simultaneously output compare results of 10 bins

   (OVER, PASS and BEEP)

■ 30 groups of parameter files can be saved and loaded

■ Screen information can be stored on U-disk

■ Data save function brings convenience for

   saving measurement result

■ Automatically update operation software through USB HOST

■ Operation languages: Chinese and English

■ Flexible and convenient file operation system

■ Handler interface realizes on-line operation.

■ Interfaces such as RS232, USB HOST, USB Device, and

   Handler

■ Compatible with LXI C standard Specifications

■ Resistance range: 10μΩ - 20kΩ

■ Highest accuracy: 0.1%, resolution: 1μΩ

■ Highest sampling rate: 20ms

■ 24 bits, 4.3-inch and 4-wire touch LCD screen, resolution:

   480×272

■ Multiple measurement combinations of R, LPR, T

■ Low-voltage test mode, effectively protects DUT

■ Offset voltage compensation(OVC)

■ Customer self-correction(0 ADJ)

■ Statistics function: CpK, Cp

■ Simultaneously output compare results of 10 bins

   (OVER, PASS and BEEP)

■ 30 groups of parameter files can be saved and loaded

■ Screen information can be stored on U-disk

■ Data save function brings convenience for

   saving measurement result

■ Automatically update operation software through USB HOST

■ Operation languages: Chinese and English

■ Flexible and convenient file operation system

■ Handler interface realizes on-line operation.

■ Interfaces such as RS232, USB HOST, USB Device, and

   Handler

■ Compatible with LXI C standard Specifications

■ Highest accuracy: ±0.05%

■ Maximum resolution: 1uΩ

■ Highest speed: 48ms

■ Comparator: High, low, pass, and Beep

■ Clear function: Clear all ranges in AUTO range, and clear

   the current range when the range is locked

■ 4 1/2 LED display

■ Direct reading value and percentage error dispaly

■ Highest accuracy: ±0.05%

■ Maximum resolution: 10uΩ

■ Highest speed: 48ms

■ Comparator: High, low, pass, and Beep

■ Clear function: Clear all ranges in AUTO range, and clear

   the current range when the range is locked

■ 4 1/2 LED display

■ Direct reading value and percentage error dispaly

■ Highest accuracy: ±0.1%

■ Maximum resolution: 1uΩ

■ Highest speed: 48ms

■ Comparator: High, low, pass, and Beep

■ Clear function: Clear all ranges in AUTO range, and clear

   the current range when the range is locked

■ 4 1/2 LED display

■ Direct reading value and percentage error dispaly
