Thông tin sản phẩm

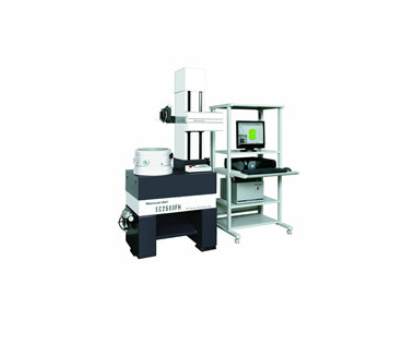

- EC2500HF/EC2700HF has fully automatic pick-up interchange system, which is guided by measuring menu. Auto posture is inner, outer, upper and lower plane. EC2700F is improved for higher vertical accuracy.
+ Full automatic centering and tilting adjustment
+ Safety function in pick-up, all postures fully automated
+ Automatic changeover function of O.D. and I.D. measurement
+ EC2500HLF / EC2700HLF is long column type
- Mechanism / system : Porous static pressure air bearing system / table rotation type
- Rotation accuracy : (0.02 + 0.0003H) μm / EC2500HF; (0.015 + 0.0003H) μm / EC2700HF; H: height from table surface (mm)
- Max. measuring diameter : φ450 mm both inner and outer diameters
- Loading capacity : 60 kg
- Z traverse range : 400 mm (at the use of b-type stylus arm)
