| Model |

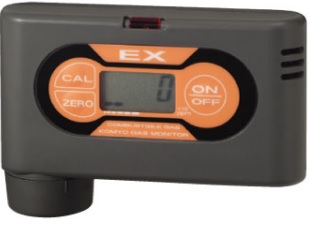

FPA-5000EM
|
| Measuring Gas |
Combustible gas in the air(Methane) |
| Measuring Principle |
Catalytic Combustion |
| Sampling Method |
Diffusion type |
| Measuring Range |
0-100%LEL |
| Resolution |
1%LEL |
| Detectable accuracy |
±10%LEL |
| Concentration display |
LCD Digital |
| Alarm Concentration |
20%LEL |
| Alarm Method |
LCD display, LED Lamp and Buzzer |
| Response Time |
Within 25 seconds at 90% response time |
| Explosionproof |
ExiadII CT4X(No.TC17118) |
| Power Source |
3 x size "AAA" Alkaline batteries(LR03) |
| Continuous Operation time |
Alkaline batteries : approx. 16 hrs |
| Operating Temperature Range |
-10-45°C; 30-85%RH (non-condensing) |
| Main Body Dimensions |
105 (W) X 56 (H) X 29 (D)mm (excluding a sensor) |
| Main Body Weight |
170g |
| Standard Accessories |
Carrying case, Charcoal filter assembly |
