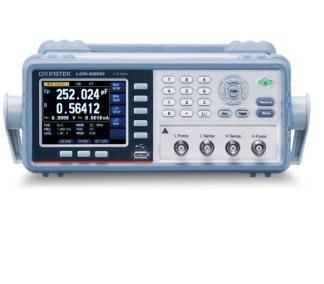

| Instek LCR-6000 Series High Precision LCR Meter Specifications |
| |
LCR-6300: 10Hz~300kHz(±0.01%) (4 digits resolution)
LCR-6200: 10Hz~200kHz(±0.01%) (4 digits resolution)
LCR-6100: 10Hz~100kHz(±0.01%) (4 digits resolution)
LCR-6020: 10Hz~ 20kHz(±0.01%) (4 digits resolution)
LCR-6002: 10Hz~ 2kHz(±0.01%) (4 digits resolution) |
| |
30Ω / 50Ω / 100Ω selectable |
| Slow / Med |
0.05% |
| Fast |
0.1% |
| |
FAST:25ms / MED:100ms / SLOW:333ms |
| Voltage |
10.00mV- 2.00V (±10%) CV :10.00mV- 2.00V(±6%) |
| Current |
100.0uA- 20.00mA (±10%) CC :100.0uA- 20.00mA(±6%) (@2VMax) |
| Internal |
|
R, X, |Z|
G, B, |Y|
L
C
D
Q
θd
θr
DCR
λ% |
0.00001O ~ 99.9999MO
0.01nS ~ 999.999S
0.00001uH ~ 9999.99H
0.00001pF ~ 9999.99mF
0.00001 ~ 9.99999
0.00001 ~ 99999.9
-179.999° ~ 179.999°
-3.14159 ~ 3.14159
0.00001Ω ~ 99.9999MΩ
-99999% ~ 99999% |
| 16 Combinations |
Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q,
Rs-Q, Rp-Q, R-X, Z-θr, Z-θd, Z-D, Z-Q, DCR |
| Monitor parameter (2 selectable) |
Z, D, Q, Vac, Iac, λ, λ%, θr, θd, R, X, G, B, Y |
| |
10 steps |
