Đồng hồ đo lực kéo nén Imada DS2 series Imada, DS2-5N, DS2-50N, DS2-200N, DS2-500N
- Simple function and low cost.
- Ideal for hand-use force measurement due to easy-grip design.
- Combining the force gauge with a test stand, you can use the unit as a simple testing machine.
- Able to draw a force-time graph with an optional software.
Thông số kỹ thuật
| Model |
DS2 series |
| Accuracy |
+/-0.2% F.S.+/-1 digit |
| Unit of measurement |
N/kfg/lbf |
| Display |
4-digit LCD |
| Sampling rate |
1000 data / sec. (max) |
| Display update |
10 times / sec. |
| Safe overload rating |
Approx. 200%F.S. |
| Function |
Peak hold/Comparator/Display reverse/Damping(2 levels) |
| Power |
Internal four AA Ni/MH batteries or external AC adapter |
| Battery life |
Approx. 10 hours(Approx.10-hour charge) |
| Operating temperature |
0 to +40 degree Celcius |
| Operating humidity |
20 to 80% RH |
| Weight |
Approx.420g |
| Output |
Digital (RS232C), Mitutoyo Digimatic, analog (+/-1VF.S.) |
| Accessory |

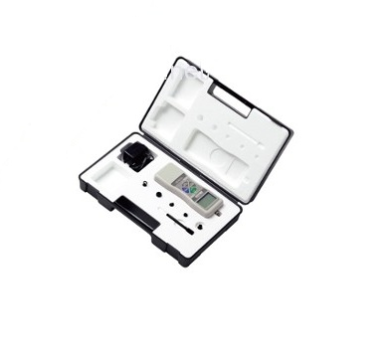

6 kinds of attachments, AC adapter, Carrying case, Instruction manual, Inspection certificate
|
