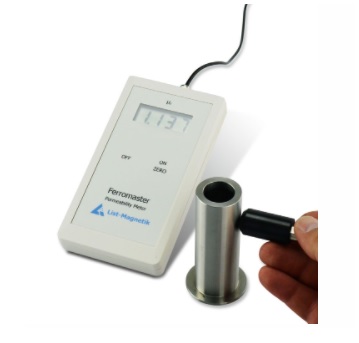

Technical Data Magnet permeability meter Ferromaster
|
| Measurement range: |
µr = 1.000 to 1.999 |
| Resolution: |
0.001 |
| Display: |
LCD 3½ digits |
| Zeroing: |
automatically |
| Accuracy at 20 °C: |
(µr - 1) x 5% |
| Operating temperature: |
0 to 50 °C |
| Field strength at probe tip: |
~ 35 kA/m |
| Minimum measurement sample size: |
20x20x8 mm (LxWxH) |
| Power supply: |
9 V PP3 battery |
| Operation time: |
~ 50 h |
| Environmental protection: |
IP65 |
| Standards: |
Permeability measurement compliant with ASTM A342 and EN 60404-15 |
| Traceability: |
Calibrated to reference standards of National Physical Laboratory, UK |
| Dimensions of unit: |
151 mm x 82 mm x 33 mm |
| Length of probe: |
35 mm |
| Diameter of probe: |
19 mm |
| Length of connection cable: |
1.5 m |
| Weight of complete instrument: |
280 g |
