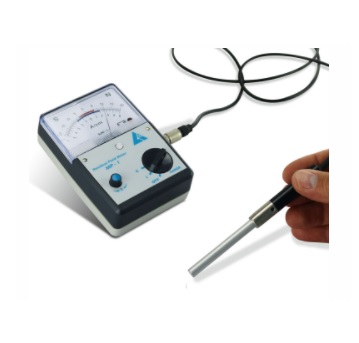

Technical Data Magnetic Field Meter / Magnetometer / Gaussmeter / Teslameter MP-1000
|
| Measurement Units: |
A/cm - Gauss(Oe) switchable
(1 A/cm = 1.256 Gauss = 1.256 Oersted) |
| Applicable measuring probes: |
axial probes P-A2 and P-W2, tangential probes P-T2 and P-Z2 |
| Measuring range DC: |
0-20,000 A/cm |
| Measuring range AC: |
20-20,000 A/cm |
| Accuracy: |
in the homogeneous field ± 2% of the measured value ± 1 digit |
| Resolution: |
0–100 A/cm: 0.1 A/cm
>= 100 A/cm: 1 A/cm
>= 1,000 A/cm: 10 A/cm
>= 10,000 A/cm: 100 A/cm |
| AC Frequency Range: |
10 Hz – 5 kHz |
| Peak Hold: |
with Impulse duration >= 0.1 msec. |
| Display: |
LCD display 3 digit |
| Power Supply: |
2x 1.5 V AA Mignon |
| Operating time: |
approx. 35 h |
| Dimensions: |
105 x 65 x 26 mm |
| Weight: |
137 g with batteries |
